Alternator Overhaul: Disassembly: Procedure

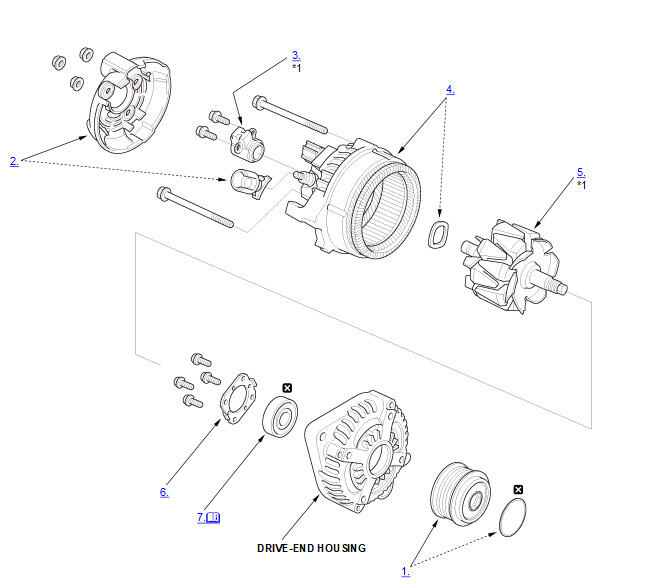

GHH368108Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Replace
*1 These parts have inspection items.
  1. OAD Pulley - Remove
  2. End Cover and Terminal Insulator - Remove
  3. Brush Holder - Remove
  4. Rear Housing Assembly - Remove
  5. Rotor - Remove
  6. Front Bearing Retainer - Remove
  7. Front Bearing - Remove

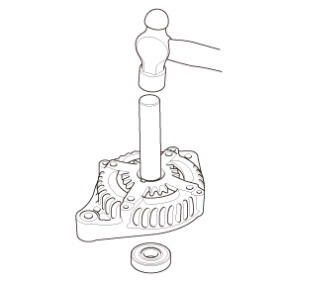

    GHH368109Courtesy of HONDA, U.S.A., INC.
    		 1. Drive out the front bearing with a brass drift and a hammer.
