Keyless Access System Circuit Diagram

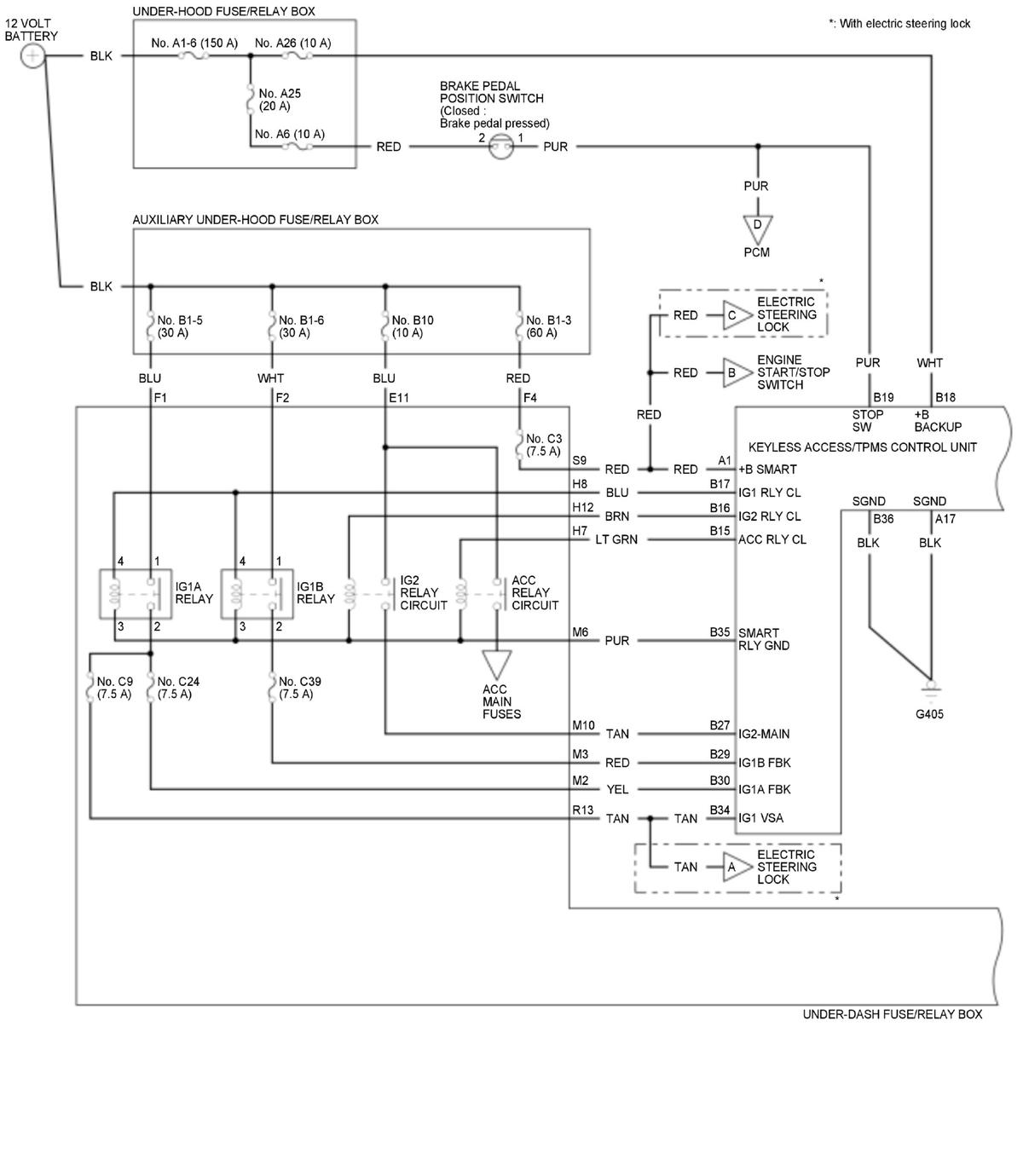

GHH558712Courtesy of HONDA, U.S.A., INC.

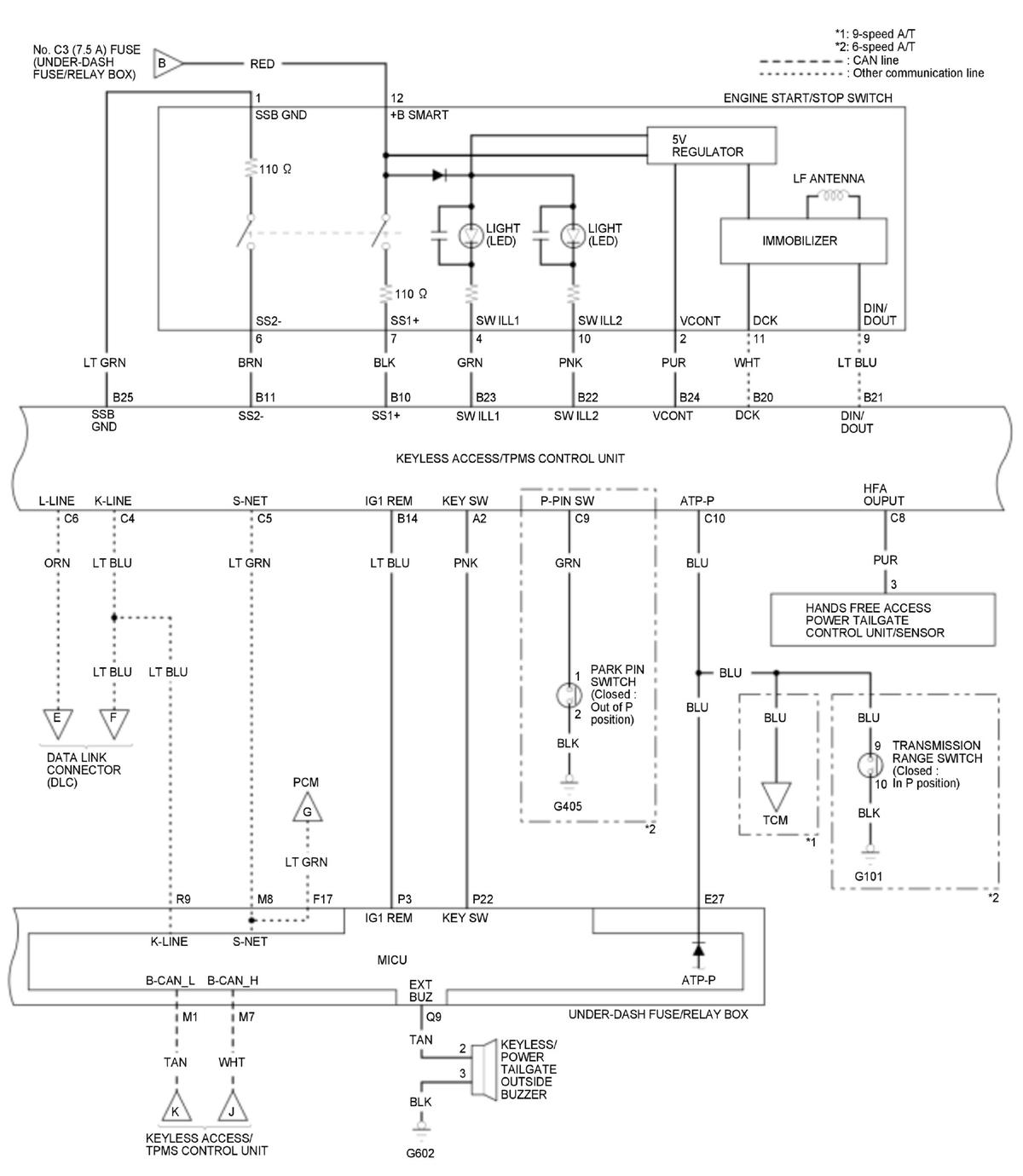

GHH558713Courtesy of HONDA, U.S.A., INC.

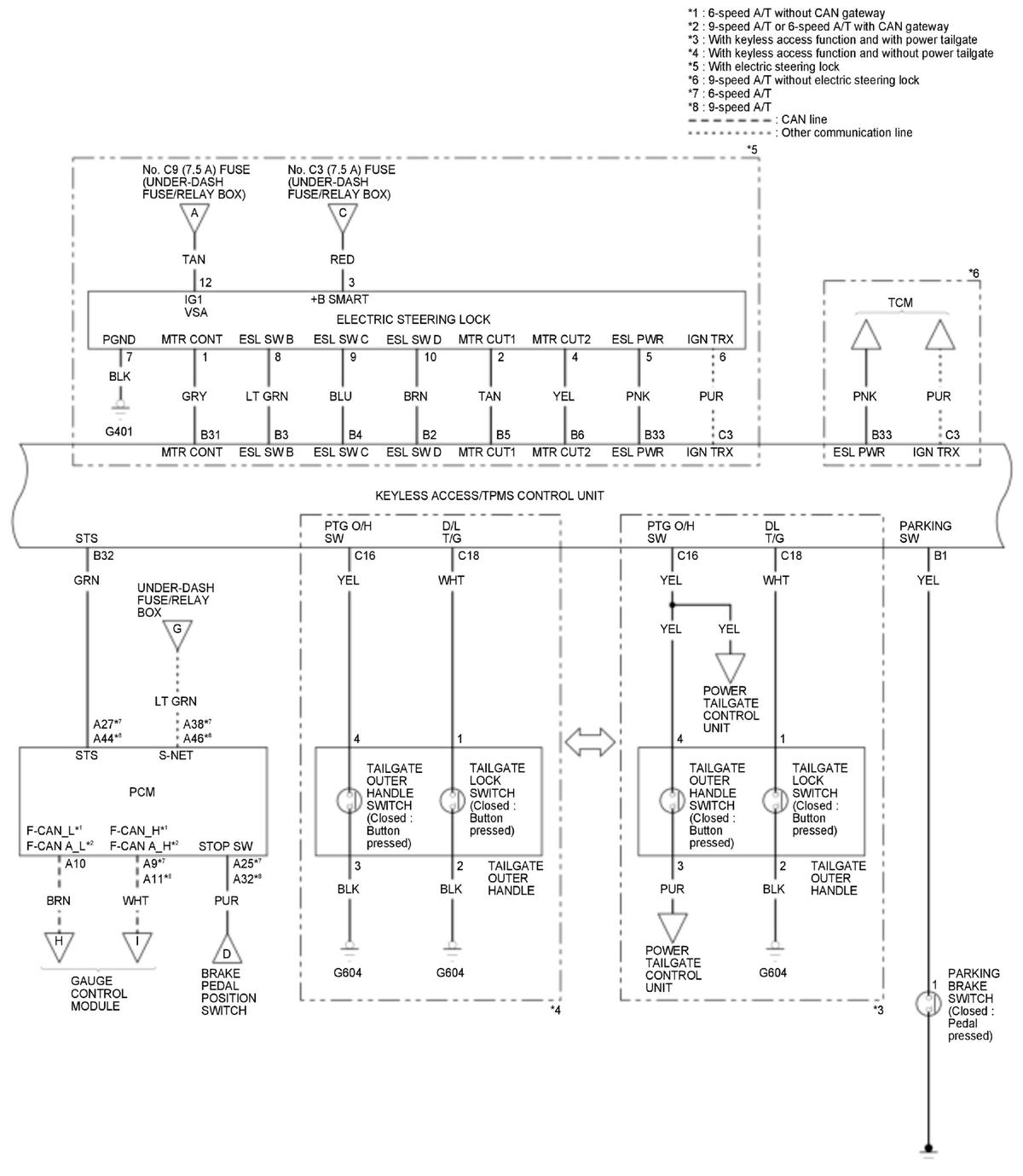

GHH558714Courtesy of HONDA, U.S.A., INC.

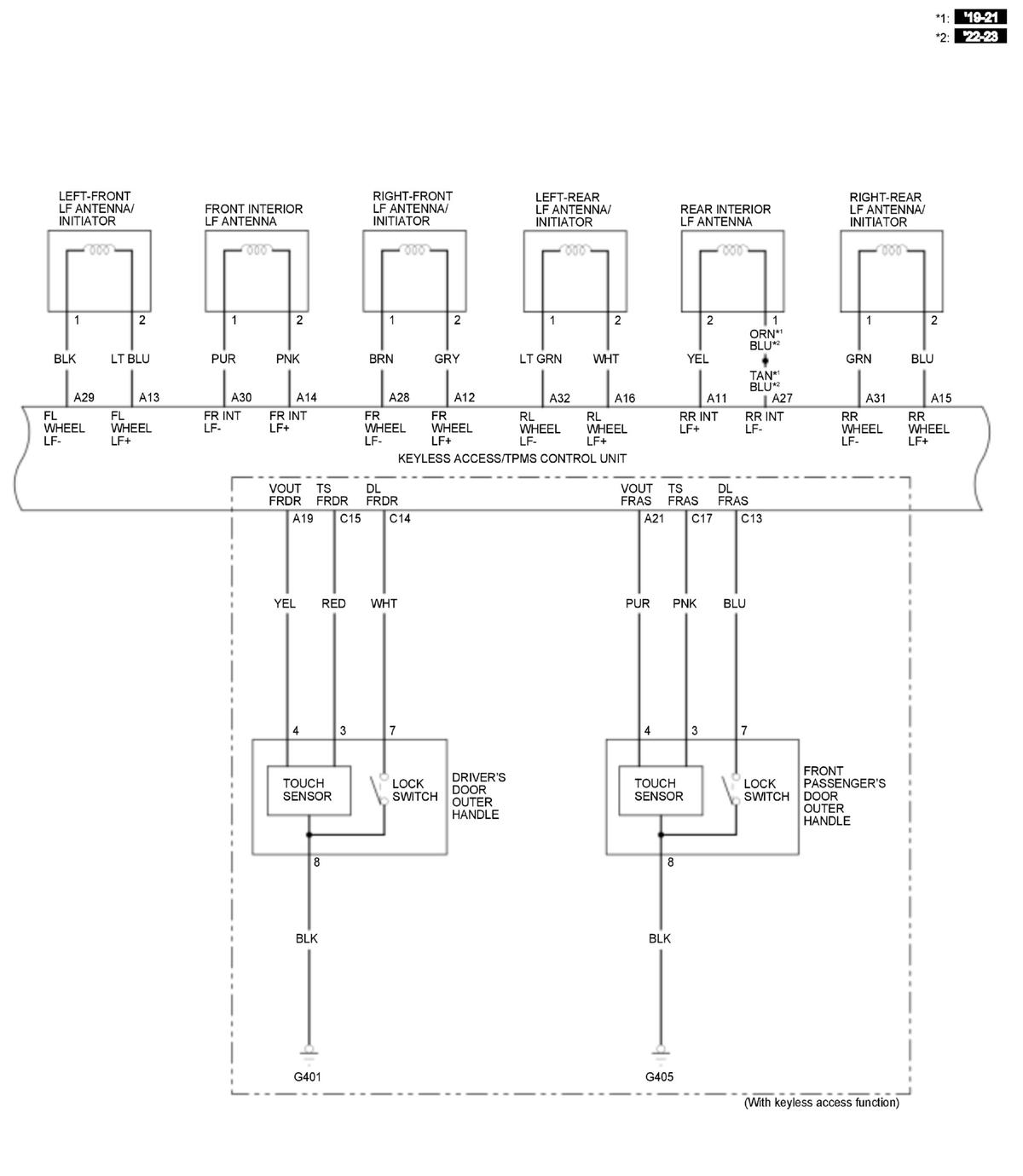

GHH558715Courtesy of HONDA, U.S.A., INC.

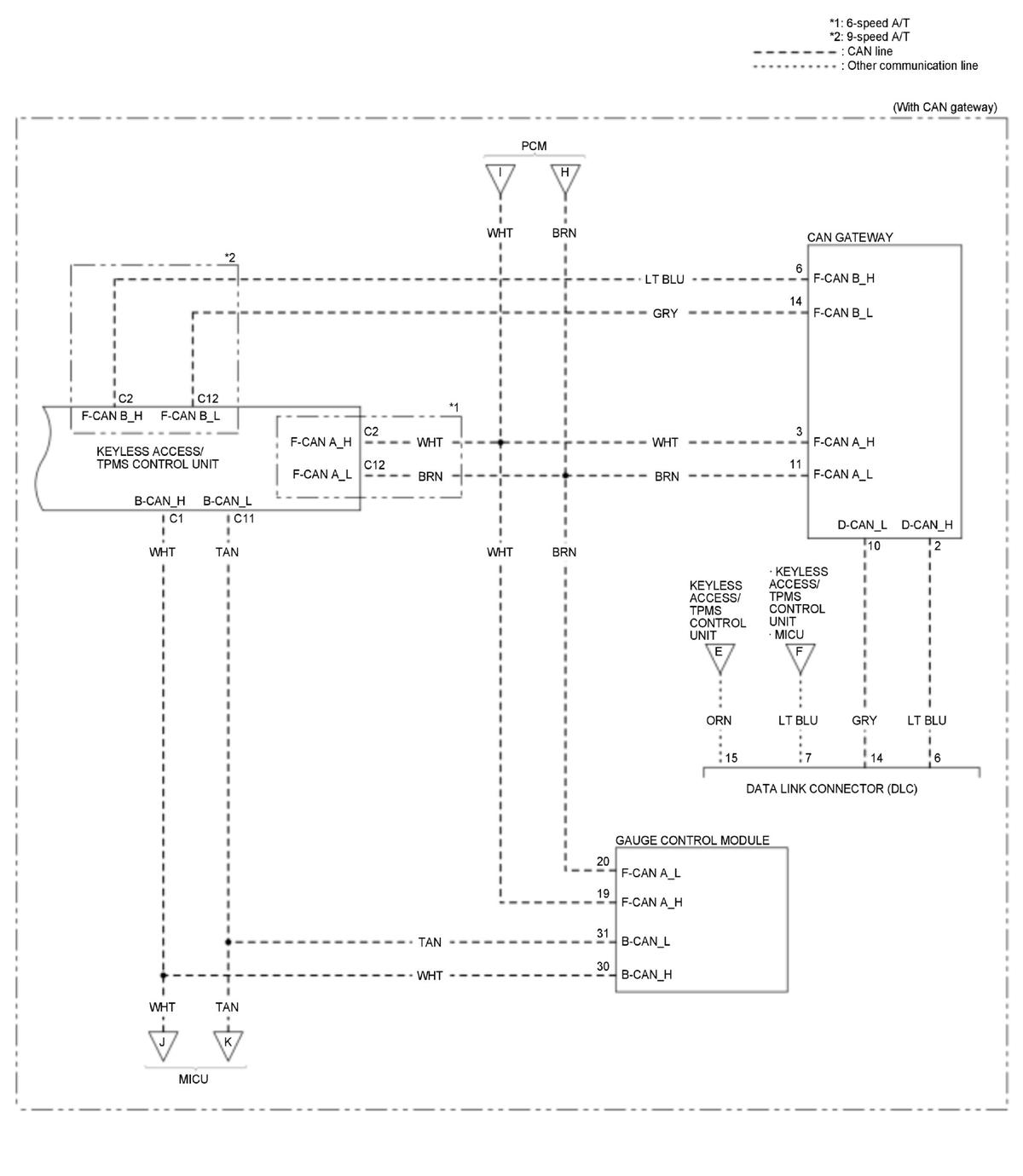

GHH558716Courtesy of HONDA, U.S.A., INC.
