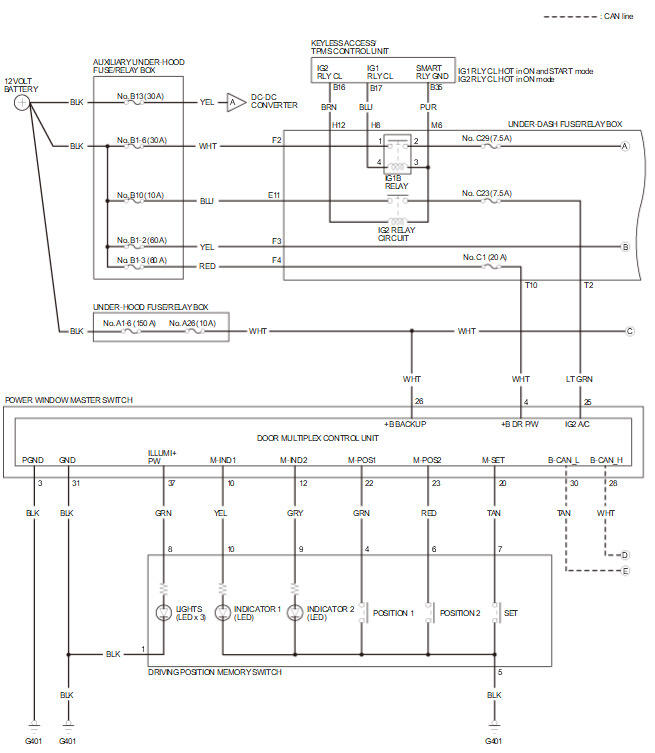

Driving Position Memory System (DPMS) Circuit Diagram

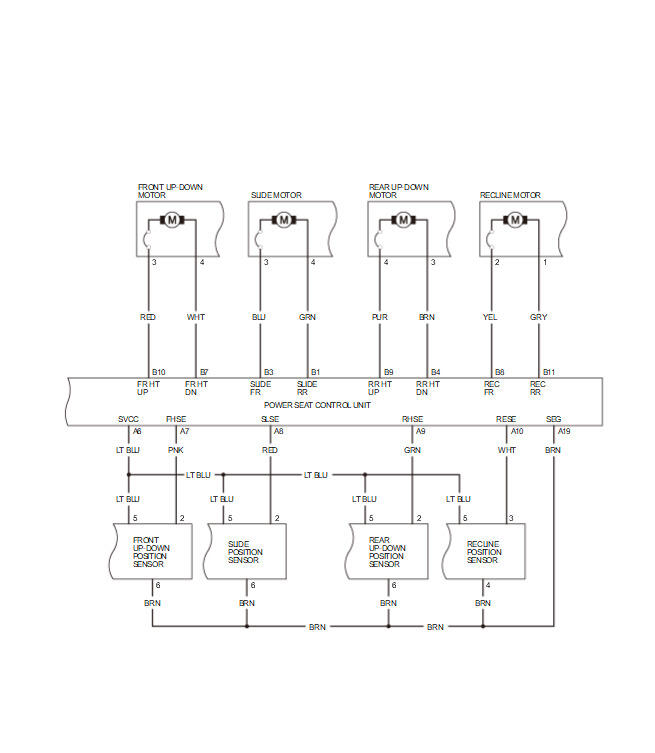

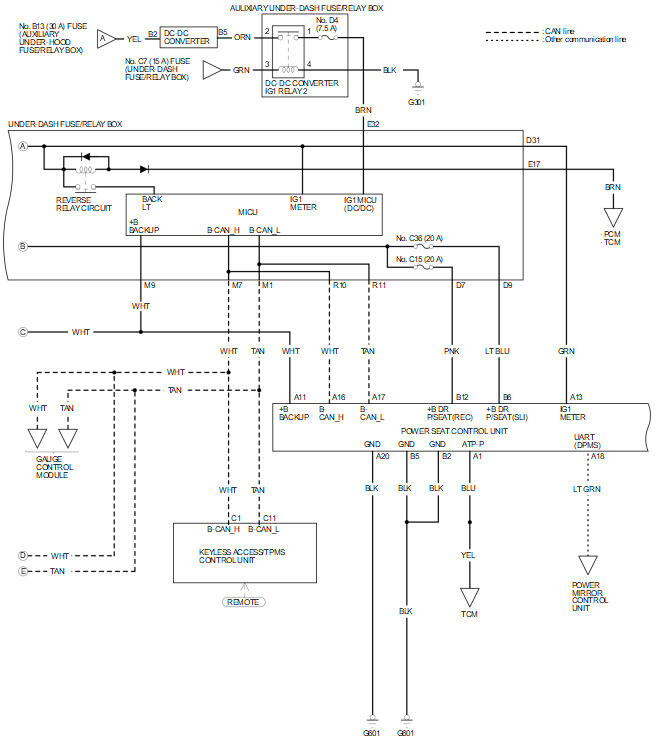

Driver's Power Seat
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.

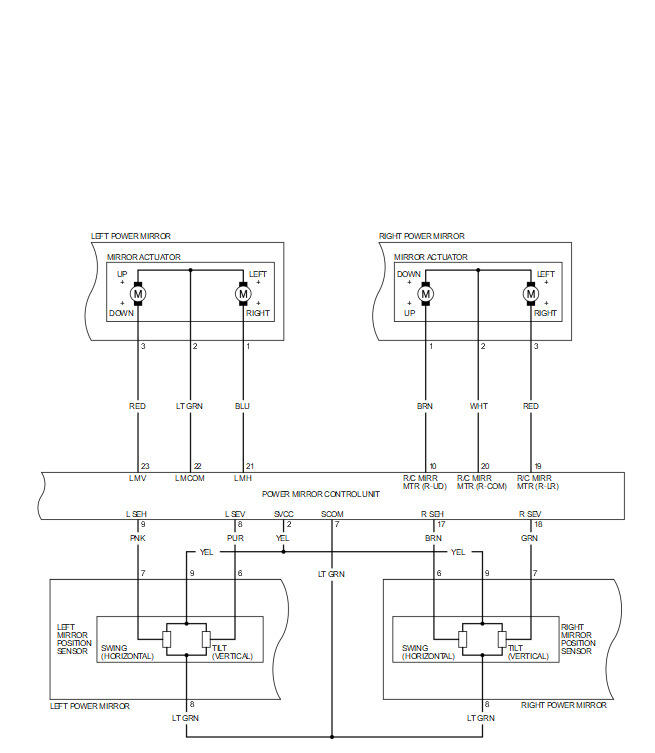

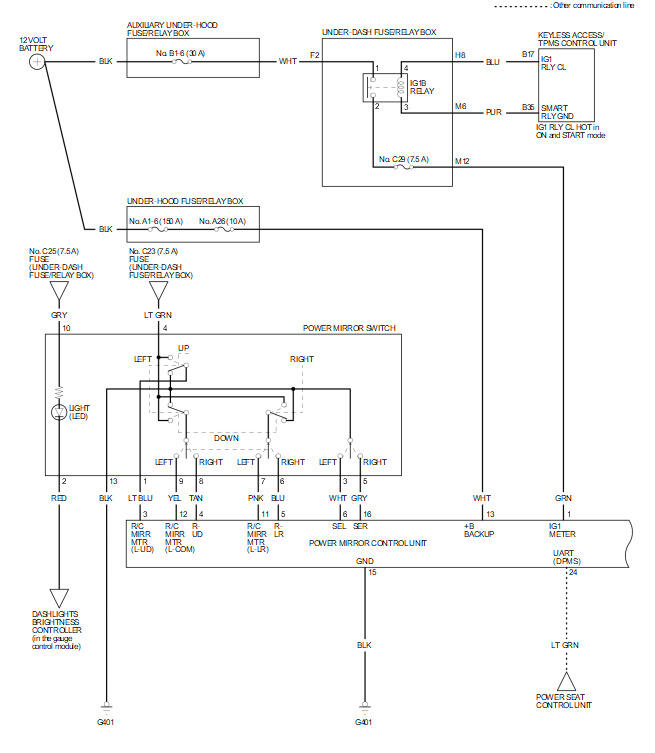

Power Mirror
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
