DTC P0450 (2025)
DTC P0450 : FTP Sensor Out of Range
NOTE: Before you troubleshoot, review the general troubleshooting information - Refer to: HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS .
| DTC Description | Confirmed DTC | Pending DTC |
|---|---|---|
| P0450 FTP Sensor Out of Range |
DTC (PGM-FI)
- EVAP system check
-1. Turn the vehicle to the ON mode.
-2. Clear the DTC with the HDS.
-3. Turn the vehicle to the OFF (LOCK) mode.
-4. Insert the emergency fuel funnel into the fuel filler neck FUEL PRESSURE RELIEVING .
NOTE: The emergency fuel funnel is stored in the lid of the right rear side trim panel.
-5. Turn the vehicle to the ON mode.
-6. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit FTP Sensor More than 28.0 mmHg Do the current condition(s) match the malfunction threshold?
YES
Go to step 3.
NO
Go to step 2.
- Problem verification
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the emergency fuel funnel from the fuel filler neck.
-3. Start the engine.
-4. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
-5. Monitor the OBD STATUS for DTC P0450 in the DTCs MENU with the HDS.
DTC Description OBD STATUS P0450 FTP Sensor Out of Range Does the HDS indicate FAILED?
YES
The failure is duplicated. Go to step 3.
NO
If the HDS indicates PASSED, intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the FTP sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot - Refer to: HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS . If the HDS indicates NOT COMPLETED, keep idling until a result comes on.
- Determine possible failure area (FTP sensor, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

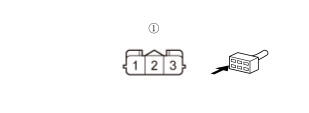

FTP sensor 3P connector
-3. Connect terminals A and B with a jumper wire.
Terminal A
FTP sensor 3P connector (female terminals) No. 1:
Terminal B
FTP sensor 3P connector (female terminals) No. 2:
-4. Turn the vehicle to the ON mode.
-5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit FTP Sensor More than 28.0 mmHg Do the current condition(s) match the malfunction threshold?
YES
Go to step 4.
NO
Replace the FTP sensor EVAP SYSTEM REMOVAL AND INSTALLATION (KA/KC) .
- Determine possible failure area (SG2/SG6 line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Remove the jumper wire from the FTP sensor 3P connector.
-3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.
Test condition
Vehicle ON mode
FTP sensor 3P connector: disconnected
Test point 1
FTP sensor 3P connector (female terminals) No. 1:
Test point 2
FTP sensor 3P connector (female terminals) No. 3:
Is there about 5.0 V?
YES
Go to step 5.
NO
Go to step 6.
- Open wire check (PTANK line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector A (50P)
-4. Connect terminals A and B with a jumper wire.
Terminal A
FTP sensor 3P connector (female terminals) No. 2:
Terminal B
Body ground
-5. Check for continuity between test points 1 and 2.
Test condition
Vehicle OFF (LOCK) mode
FTP sensor 3P connector: disconnected
PCM connector A (50P): disconnected
FTP sensor 3P connector No. 2: jumped to body ground
Test point 1
PCM connector A (50P) No. 19 - Refer to: PCM CONNECTOR FOR INPUTS AND OUTPUTS
Test point 2
Body ground
Is there 1.0 Ohm or less?
YES
The PTANK wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM, then recheck. If DTC P0450 goes away and the PCM was substituted, replace the original PCM PCM REMOVAL AND INSTALLATION .
NO
Repair an open in the PTANK wire between the PCM (A19) and the FTP sensor.
- Open wire check (SG2/SG6 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
-3. Disconnect the following connector.
PCM connector E (80P)
-4. Connect terminals A and B with a jumper wire.
Terminal A
FTP sensor 3P connector (female terminals) No. 1:
Terminal B
Body ground
-5. Check for continuity between test points 1 and 2.
Test condition
Vehicle OFF (LOCK) mode
FTP sensor 3P connector: disconnected
PCM connector E (80P): disconnected
FTP sensor 3P connector No. 1: jumped to body ground
Test point 1
PCM connector E (80P) No. 58 - Refer to: PCM CONNECTOR FOR INPUTS AND OUTPUTS
Test point 2
Body ground
Is there 1.0 Ohm or less?
YES
The SG2/SG6 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM, then recheck. If DTC P0450 goes away and the PCM was substituted, replace the original PCM PCM REMOVAL AND INSTALLATION .
NO
Repair an open in the SG2/SG6 wire between the PCM (E58) and the FTP sensor.
