Removal and Installation

NOTE:  Where icon is shown for further information continue to the information below.

Front Bank (Bank 2)

9-speed A/T

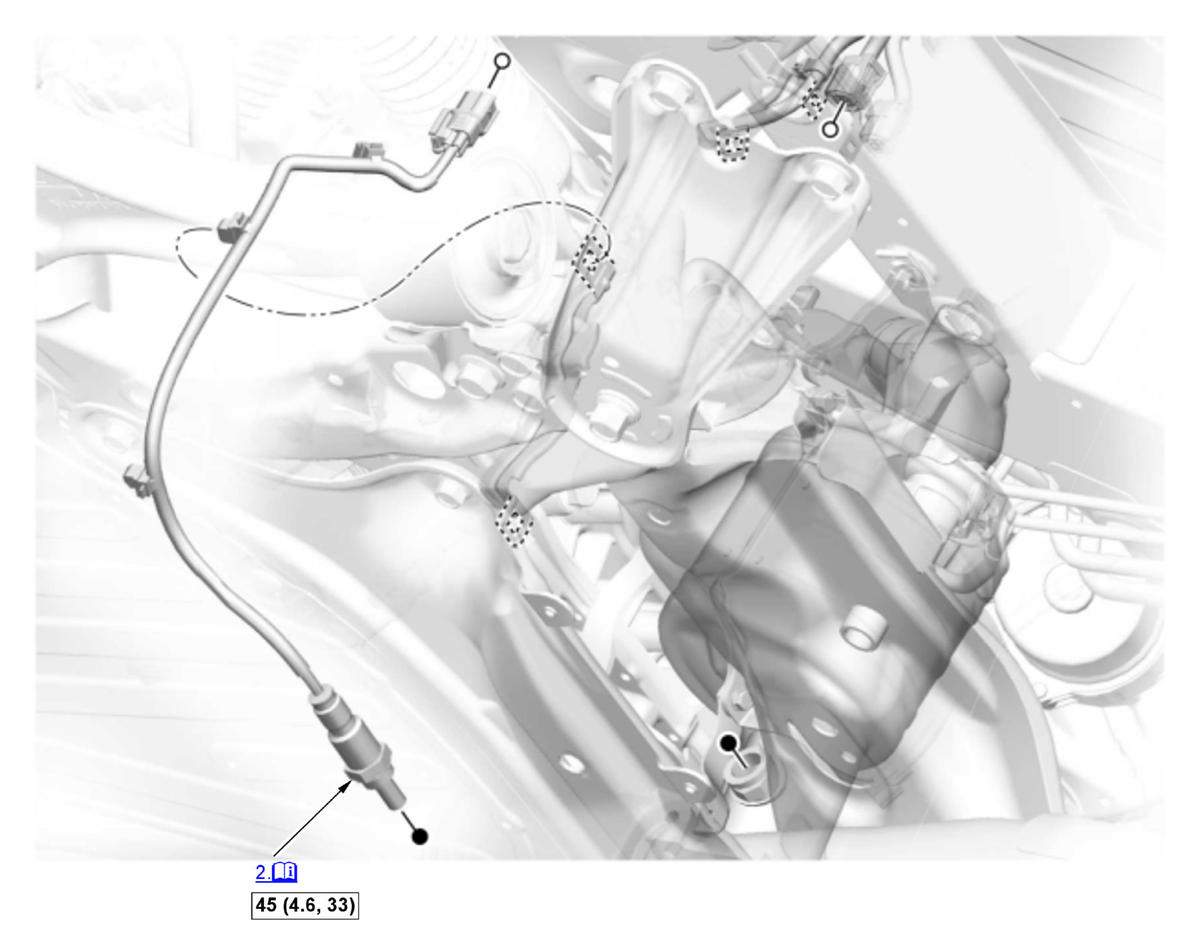

Fig 1: Secondary HO2S Front Bank (Bank 2) (9-speed A/T) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

Front Bank (Bank 2)

10-speed A/T

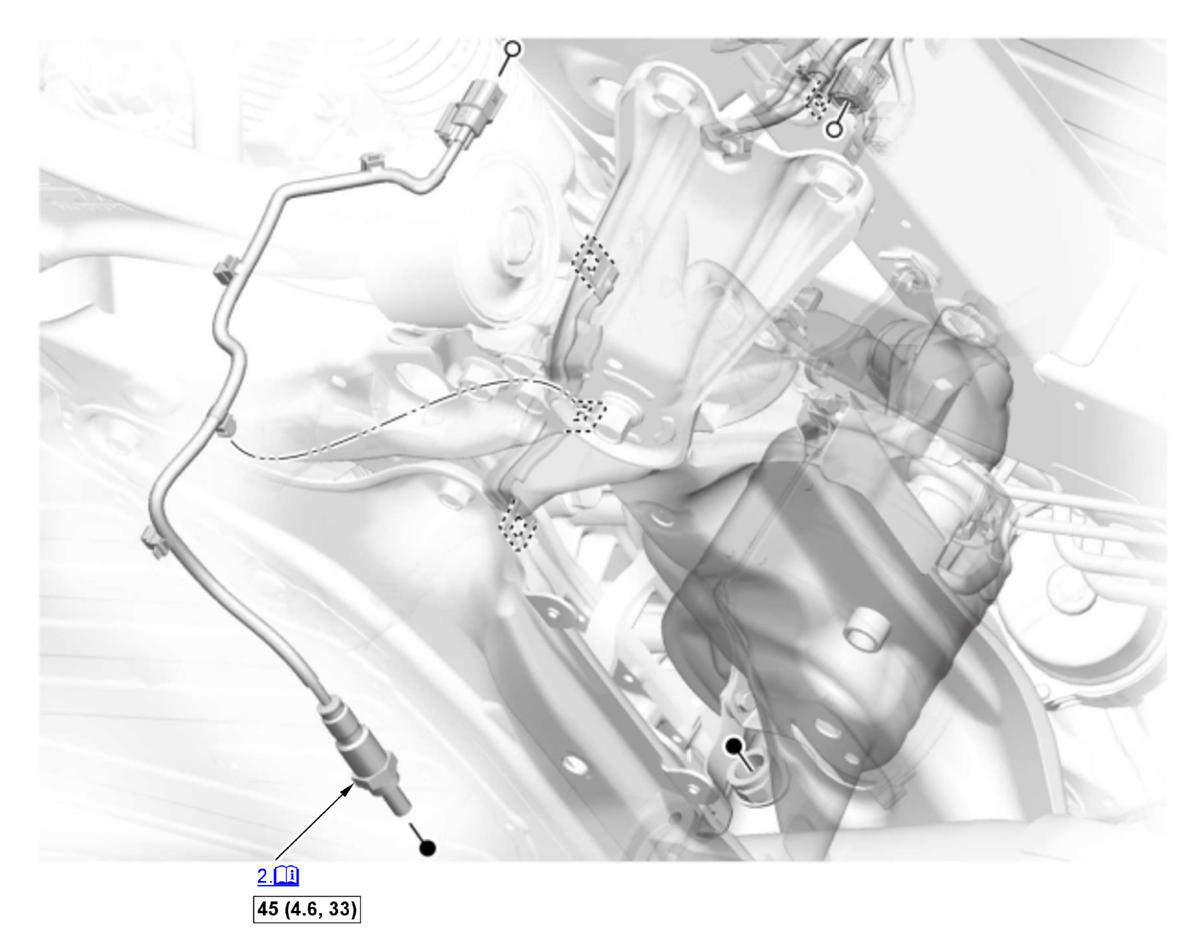

Fig 2: Secondary HO2S Front Bank (Bank 2) (10-speed A/T) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

Rear Bank (Bank 1)

9-speed A/T

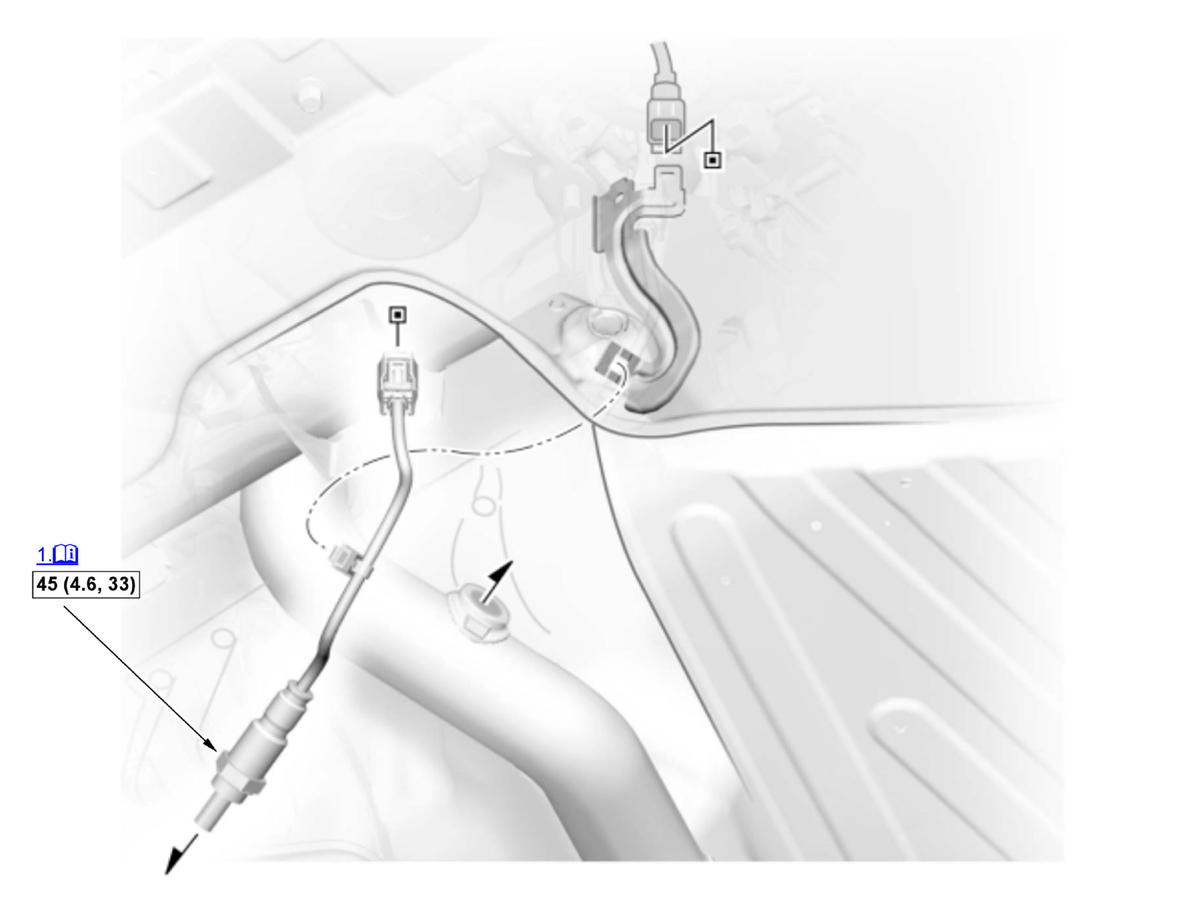

Fig 3: Secondary HO2S Rear Bank (Bank 1) (9-speed A/T) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

Rear Bank (Bank 1)

10-speed A/T

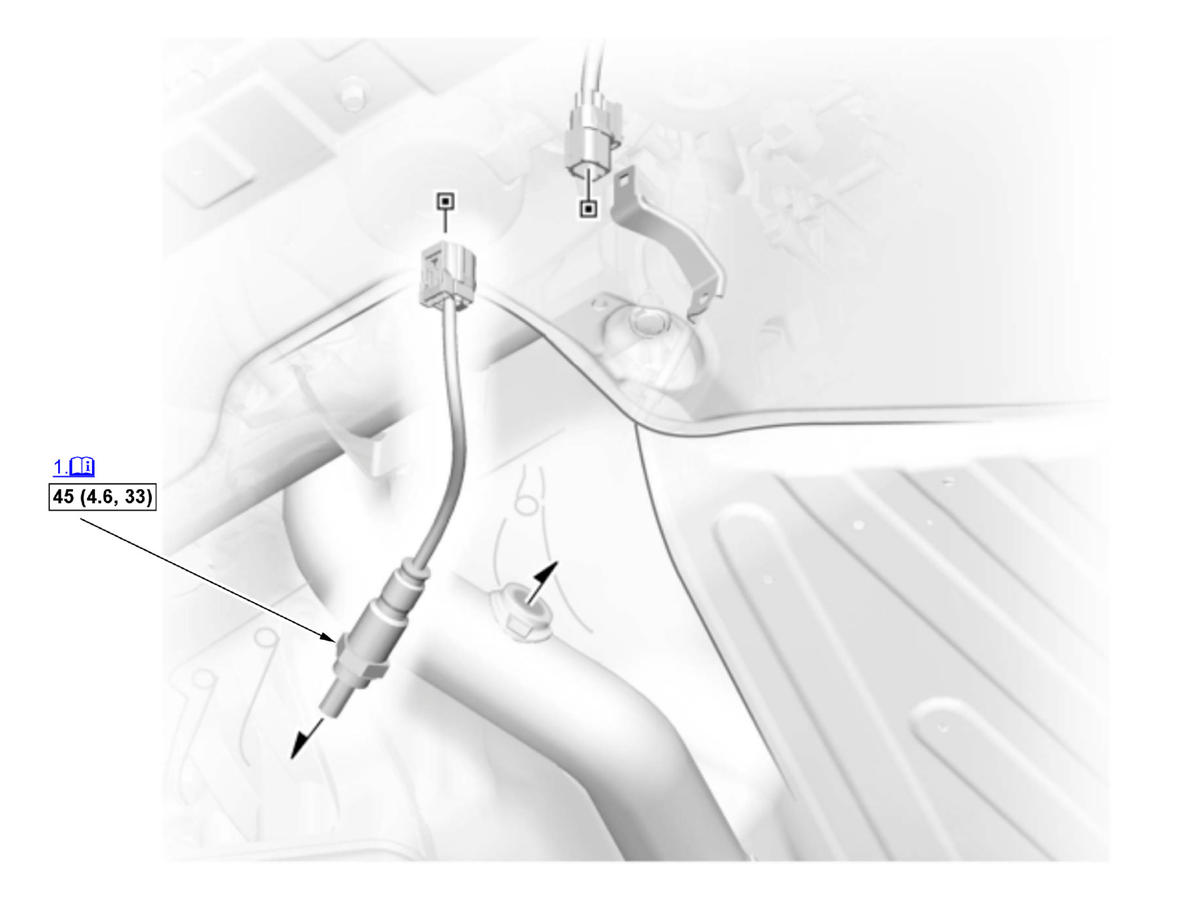

Fig 4: Secondary HO2S Rear Bank (Bank 1) (10-speed A/T) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

Front Bank (Bank 2)

1. Secondary HO2S - Remove

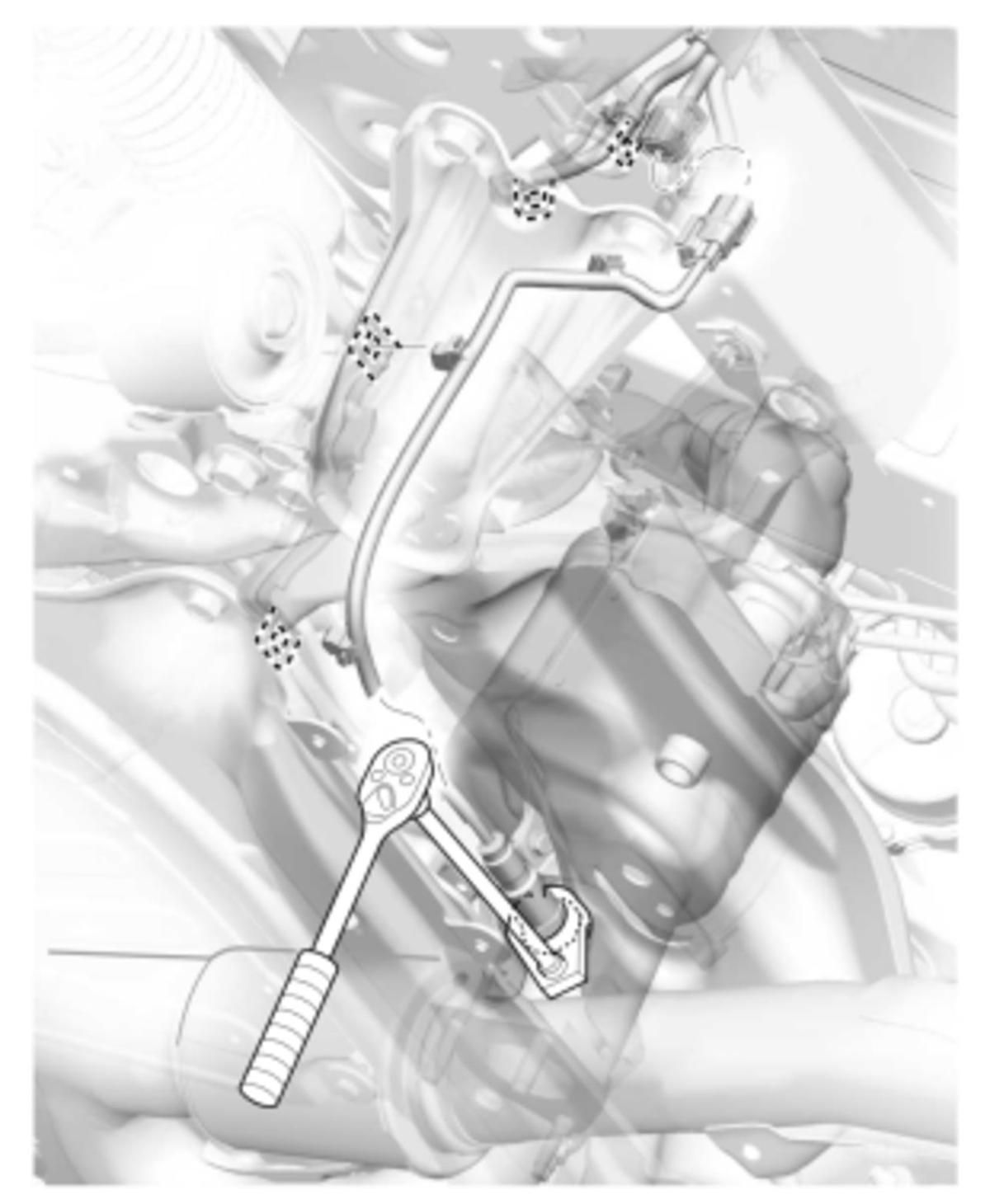

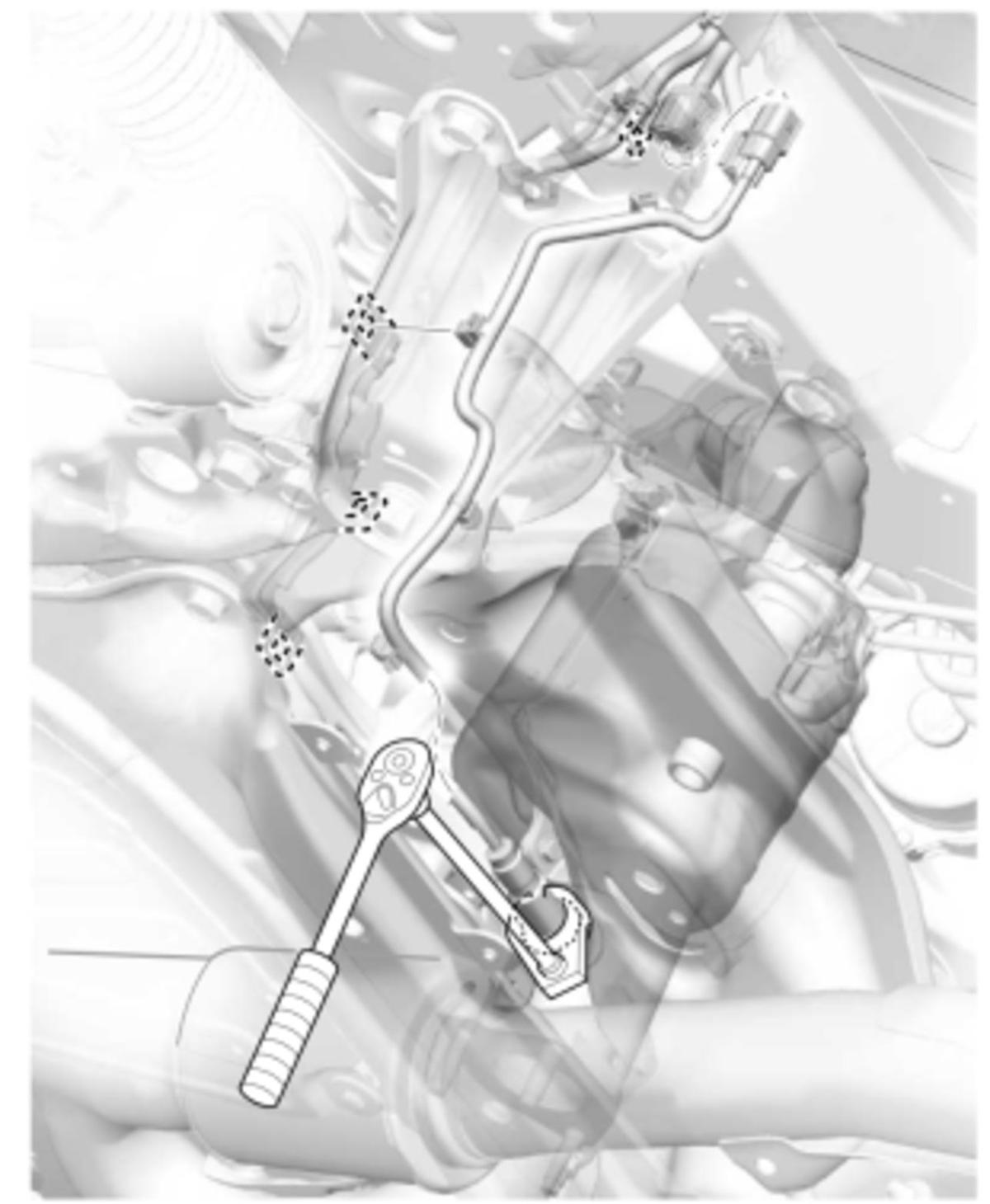

   9-speed A/T  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. 10-speed A/T  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Using the sensor socket wrench, remove secondary HO2S.

2. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Rear Bank (Bank 1)

3. Transmission Undercover - Remove
4. Secondary HO2S - Remove

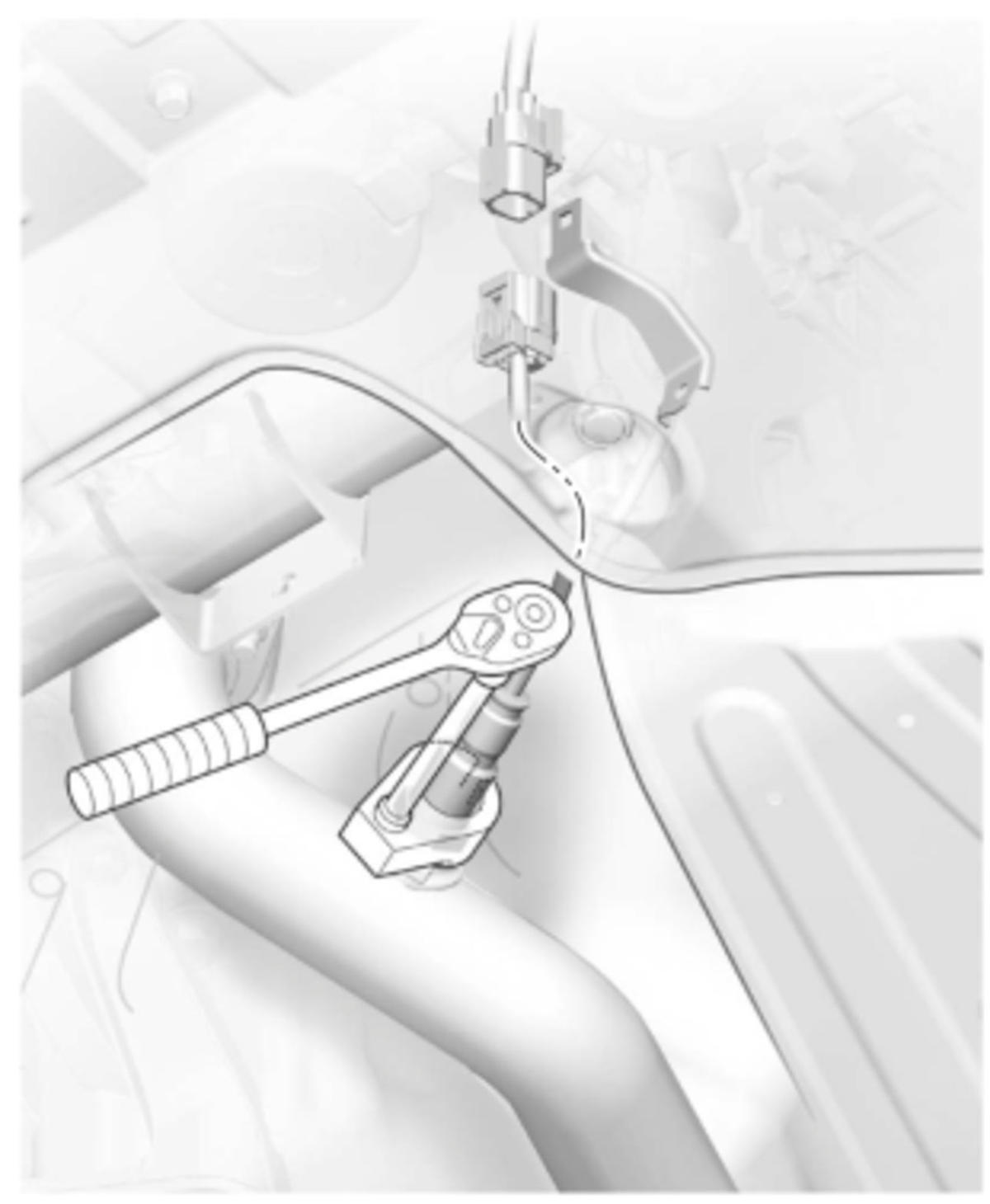

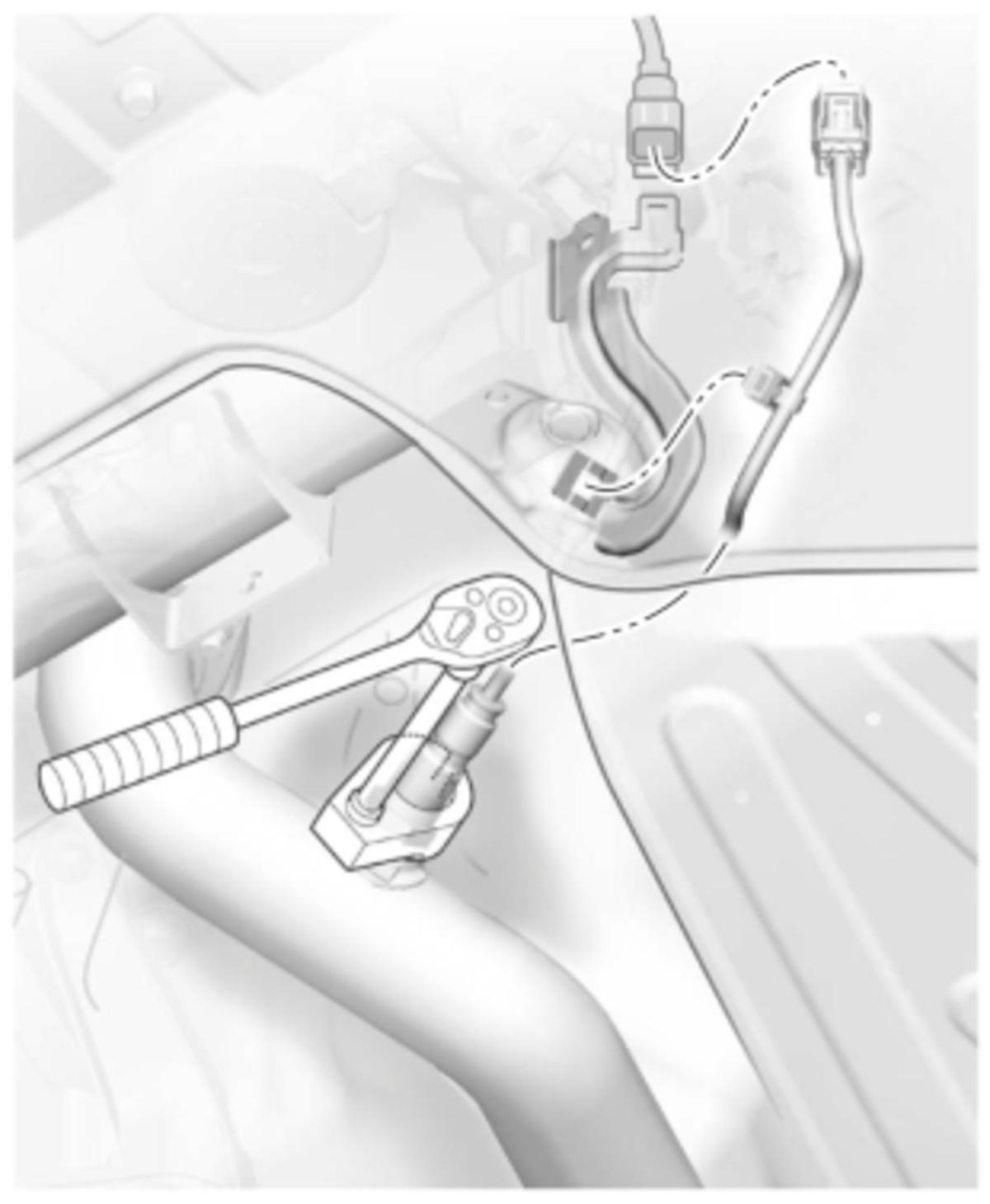

   9-speed A/T  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. 10-speed A/T  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Using the sensor socket wrench, remove secondary HO2S.

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
