Safety Support Switch: Test

5P type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

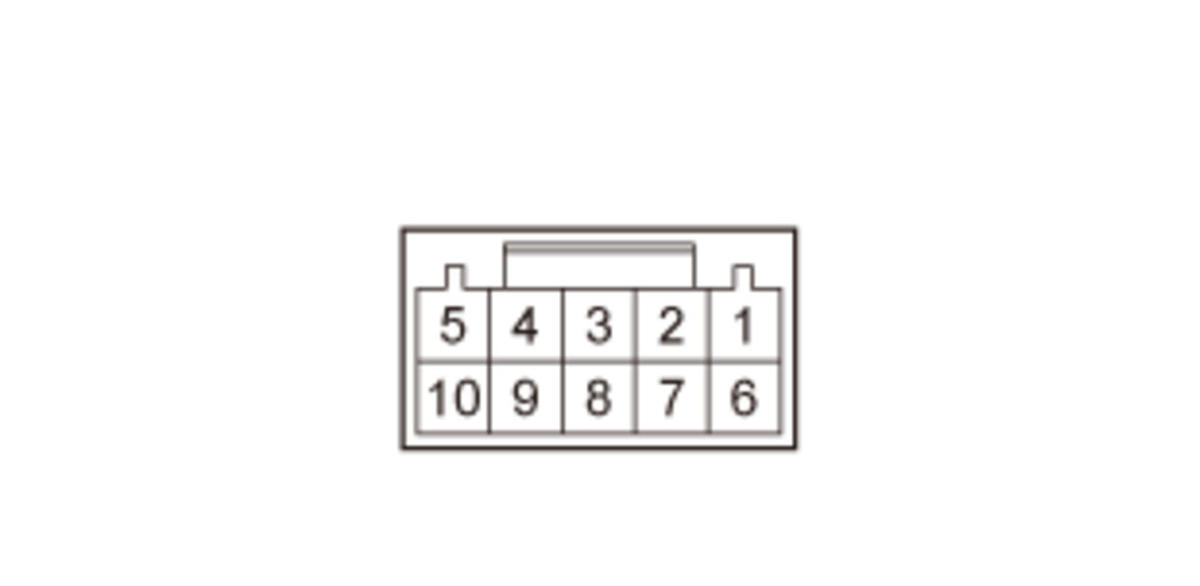

10P type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

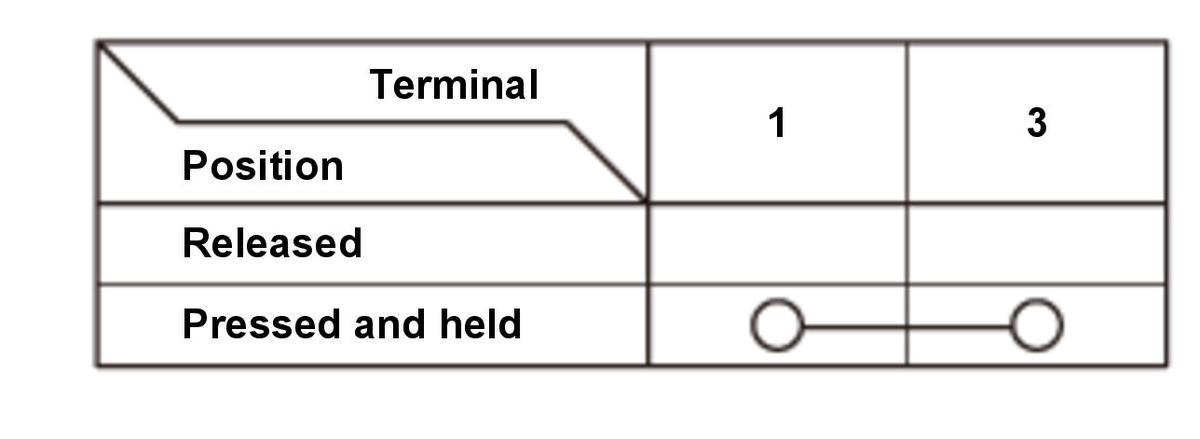

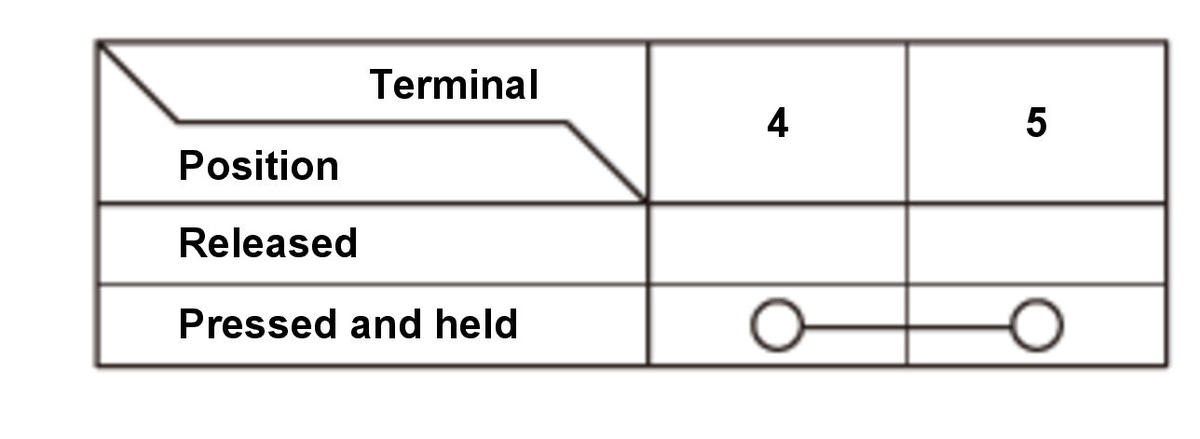

Safety Support Switch Continuity Check:

1. Check for continuity between the connector (male terminals) terminals in each switch position according to the table.If the continuity is not as specified, replace the safety support switch.

5P type

Courtesy of HONDA, U.S.A., INC.

10P type

Courtesy of HONDA, U.S.A., INC.

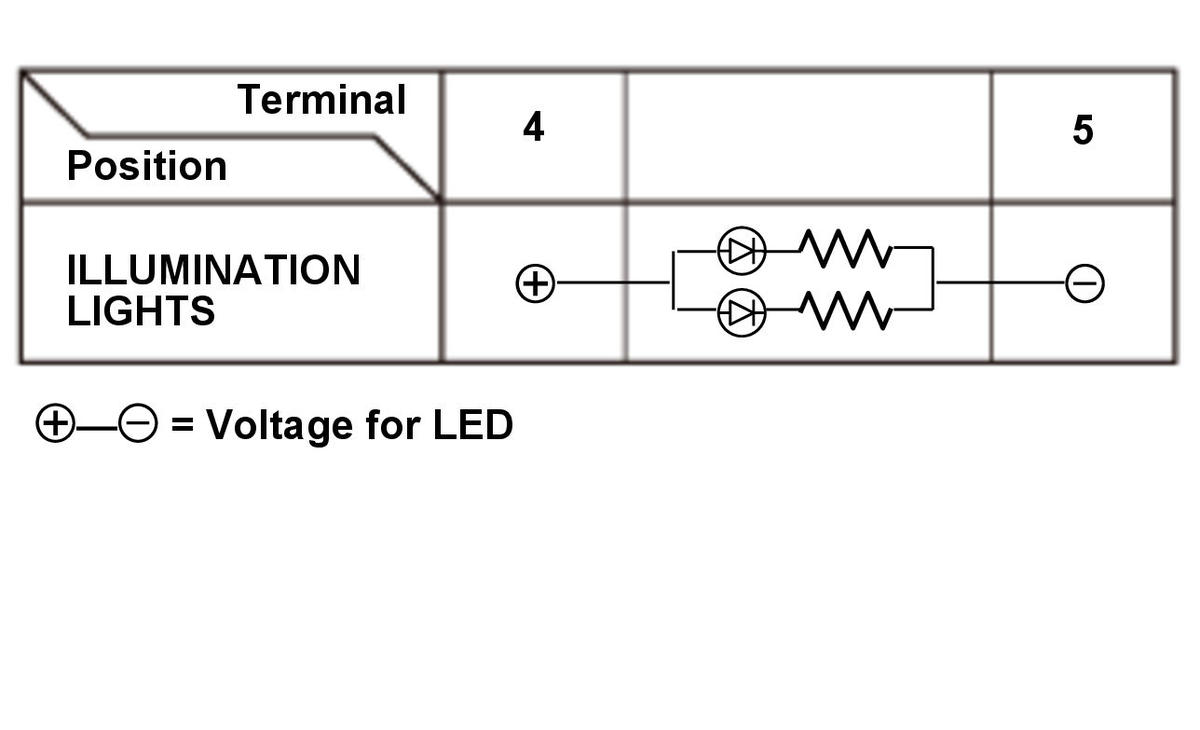

Safety Support Switch Illumination Circuit Check:

1. Check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE:  Important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).If the results are not as specified, replace the safety support switch.
