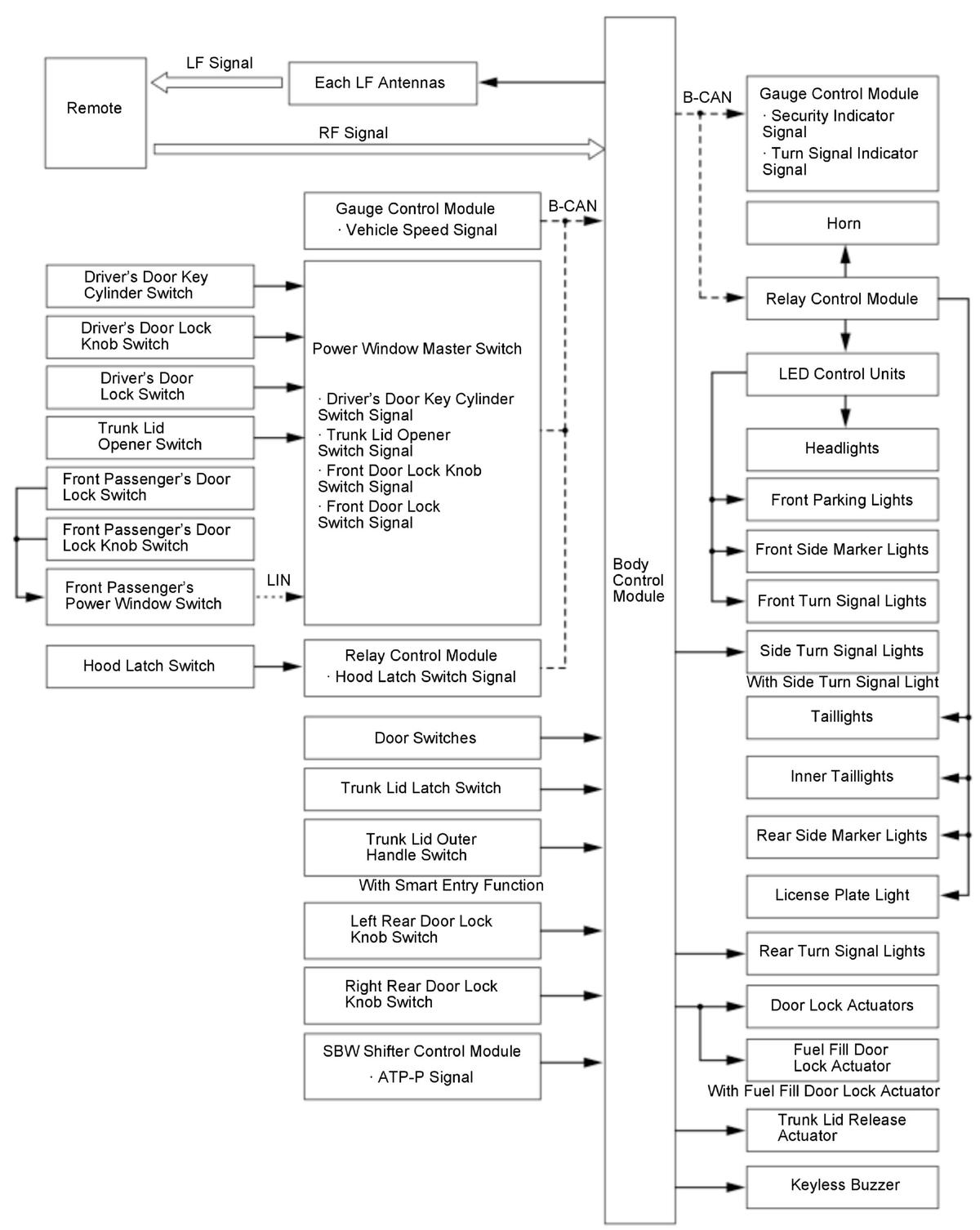

Keyless/Power Door Locks/Security - System Diagram

For locations of each component on the vehicle, refer to the Component Location Index .

Courtesy of HONDA, U.S.A., INC.
