DTC 1702

DTC 1702  : SXM Antenna Error

NOTE:

• Check the vehicle 12 volt battery condition first .
• This navigation DTC sets when there is poor connectors or loose terminals at the XM antenna connector or an open or short in the antenna lead.
• Before you troubleshoot, make sure to follow the General Troubleshooting Information .
• Check any official Honda service website for more service information about the navigation system.
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Clear the hard error codes .

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Wait for at least 6 seconds.

   -4. Turn the vehicle to the ON mode.

   -5. Turn on the audio system, and select the XM radio.

   -6. Check for hard error codes .

   Is DTC 1702 indicated?

   YES

   The failure is duplicated, go to step 2.

   NO

   Intermittent failure, the system is OK at this time.

2. Determine possible failure area (XM antenna, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Roof antenna 2P connector

   -3. Turn the vehicle to the ON mode.

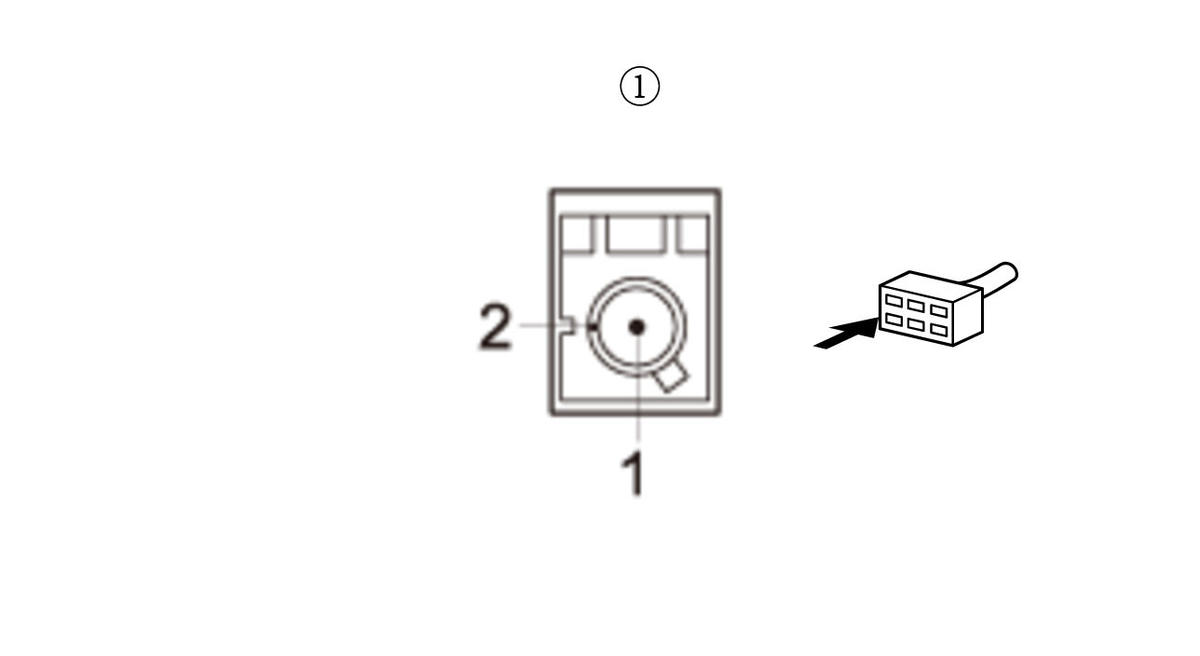

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Roof antenna 2P connector: disconnected
   Test point 1	Roof antenna 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Replace the roof antenna .

   NO

   Go to step 3.

3. Shorted wire check (SAT/TER line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Audio-navigation unit connector N (2P)

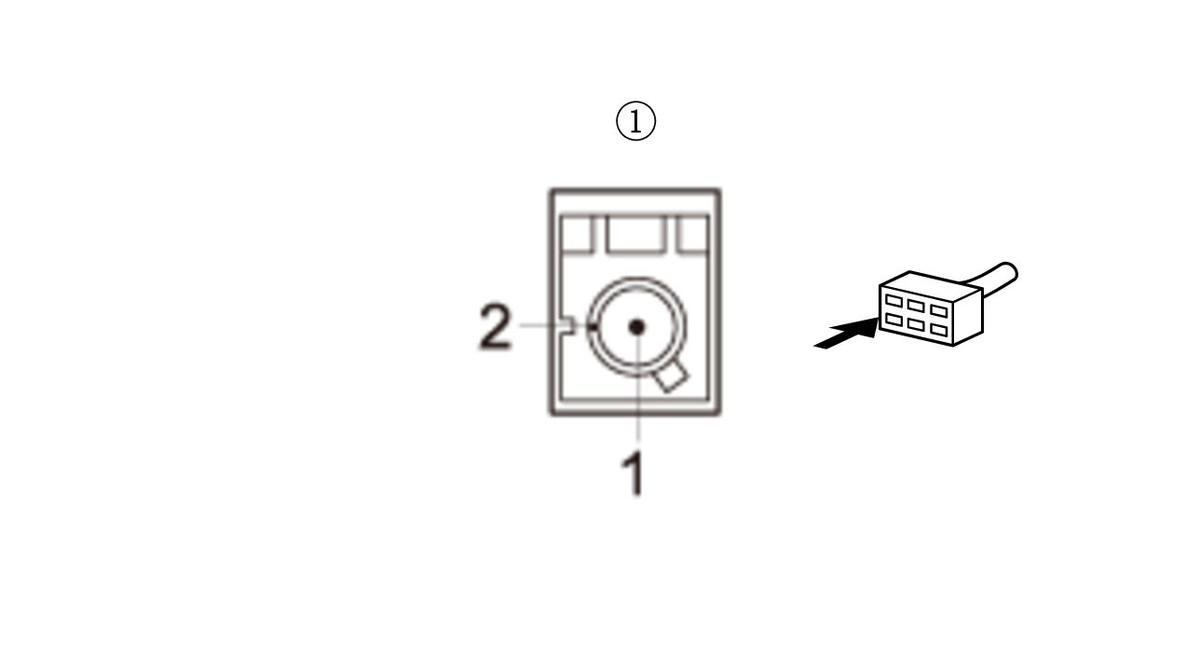

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Roof antenna 2P connector: disconnected
   	Audio-navigation unit connector N (2P): disconnected
   Test point 1	Roof antenna 2P connector (male terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   There is a short to body ground in the wire between the roof antenna and the audio-navigation unit. Replace the affected antenna lead.

   NO

   The SAT/TER wire is not shorted to ground. Go to step 4.

4. Shorted wire check (SAT/TER line to SH (SAT/TER) line)

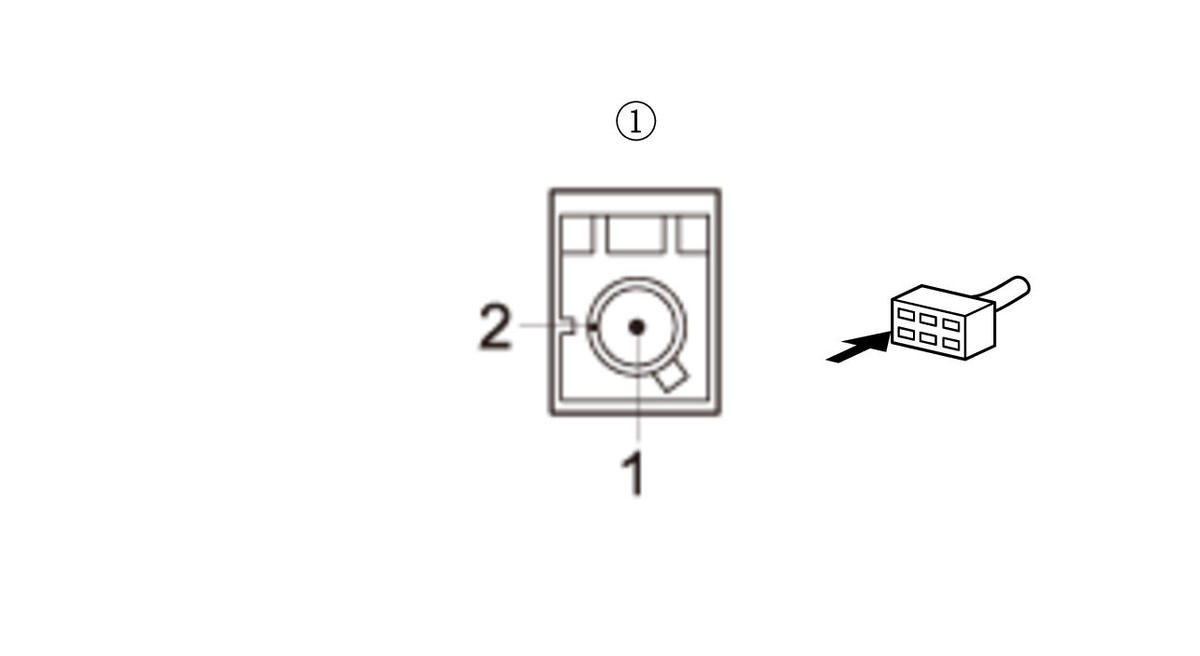

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Roof antenna 2P connector: disconnected
   	Audio-navigation unit connector N (2P): disconnected
   Test point 1	Roof antenna 2P connector (male terminals) No. 1:
   Test point 2	Roof antenna 2P connector (male terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   There is a short in the wire between the roof antenna and the audio-navigation unit. Replace the affected antenna lead.

   NO

   The SAT/TER wire is not shorted to SH (SAT/TER) wire. Go to step 5.

5. Open wire check (SAT/TER line)

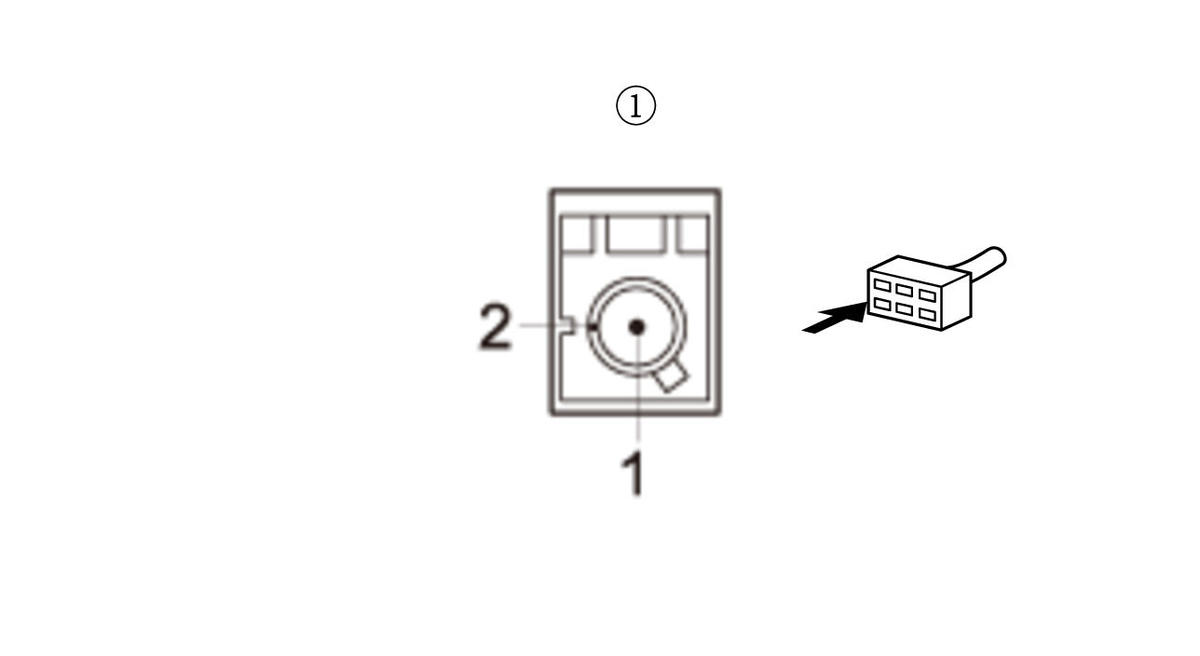

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Roof antenna 2P connector: disconnected
   	Audio-navigation unit connector N (2P): disconnected
   Test point 1	Audio-navigation unit connector N (2P) No. 1
   Test point 2	Roof antenna 2P connector (male terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the audio-navigation unit .

   NO

   There is an open in the wire between the roof antenna and the audio-navigation unit. Replace the affected antenna lead.
