Crankshaft Pulley Removal and Installation: Removal

  1. Right Front Wheel - Remove
  2. Right Front Splash Shield - Remove
  3. Drive Belt - Remove
  4. Crankshaft Pulley - Remove

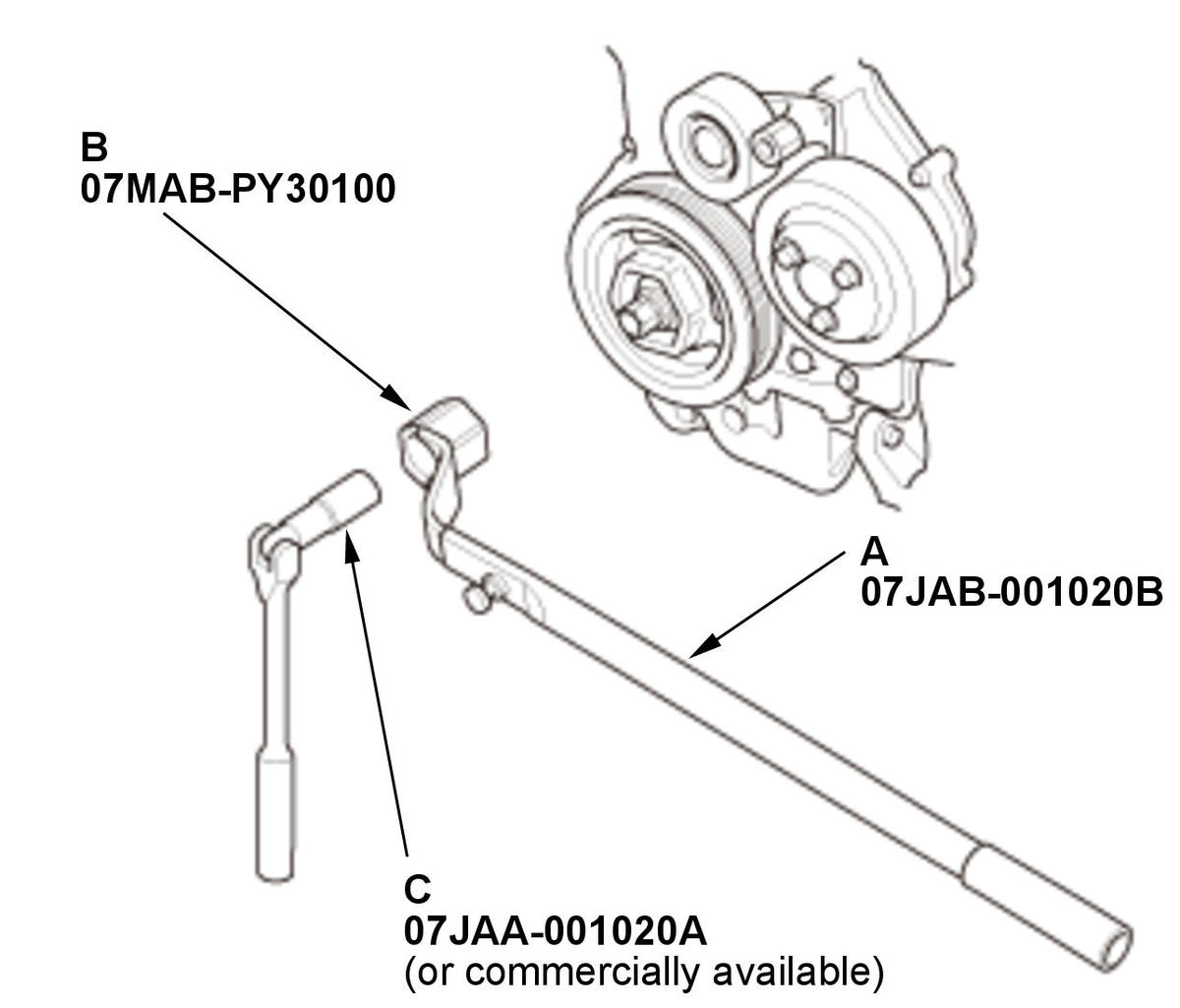

    GHH435340Courtesy of HONDA, U.S.A., INC.
    		 1. Hold the pulley with the holder handle (A) and the pulley holder attachment, 50 x 39 mm (B).

    2. Remove the bolt with a socket, 19 mm (C) and a breaker bar.

    3. Remove the crankshaft pulley.
