Vehicle Speed Pulse

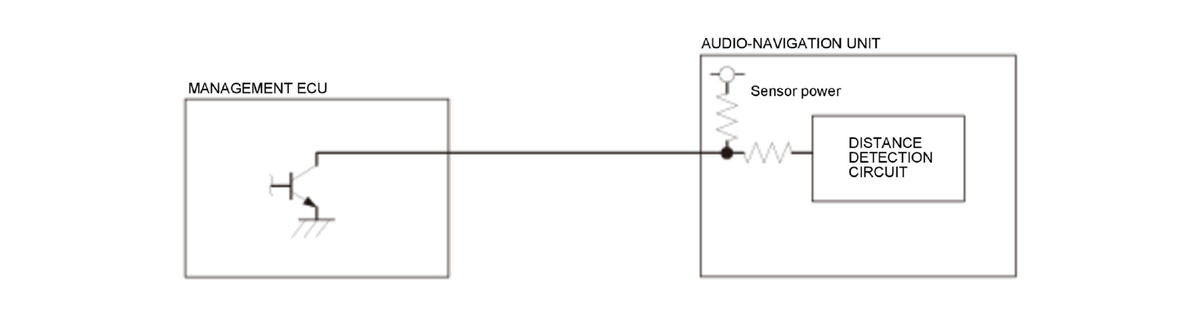

The vehicle speed pulse is sent by the management ECU. The management ECU receives a signal from the output shaft speed sensor, then processes the signal and transmits it to the speedometer and other systems.
