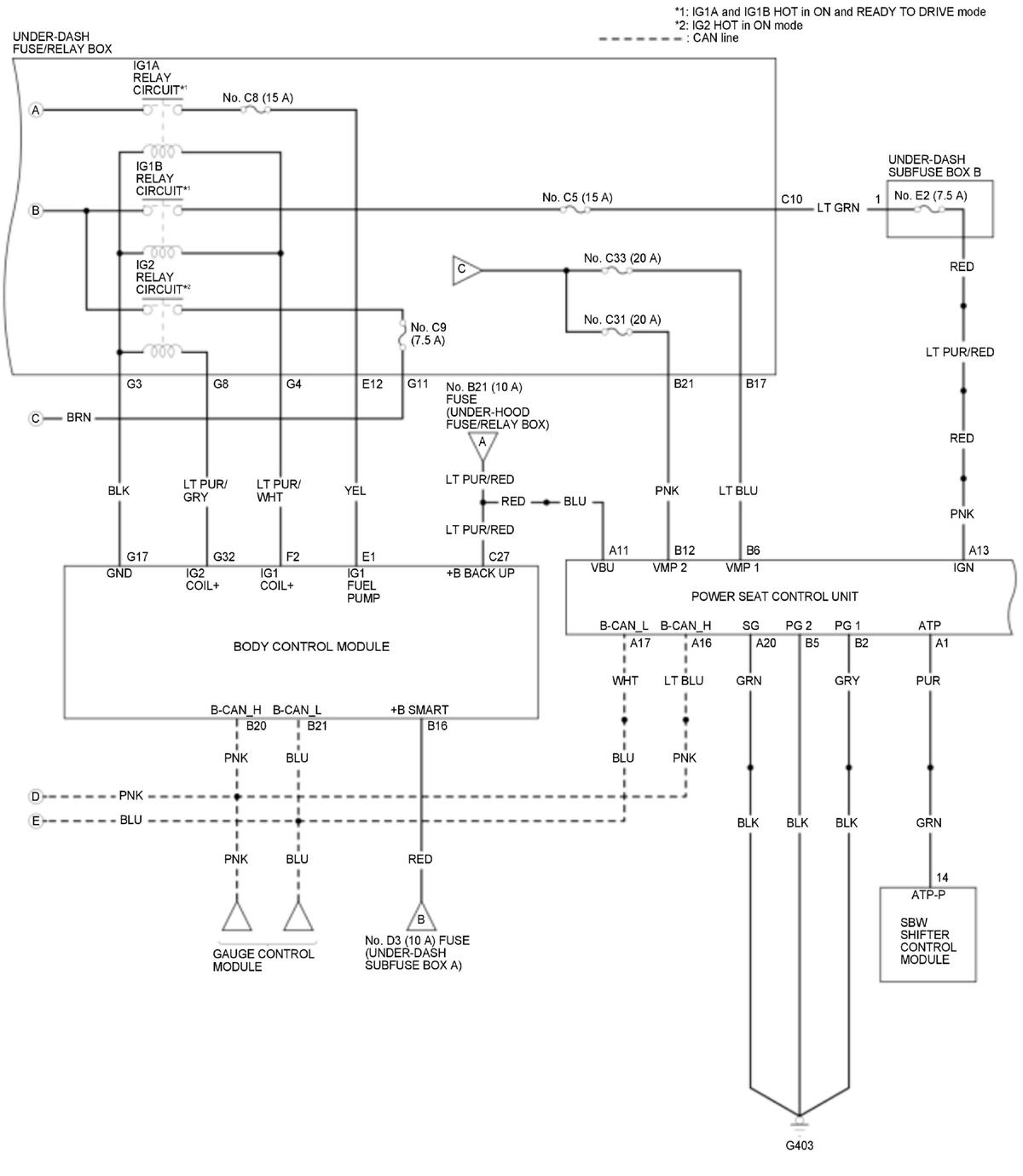

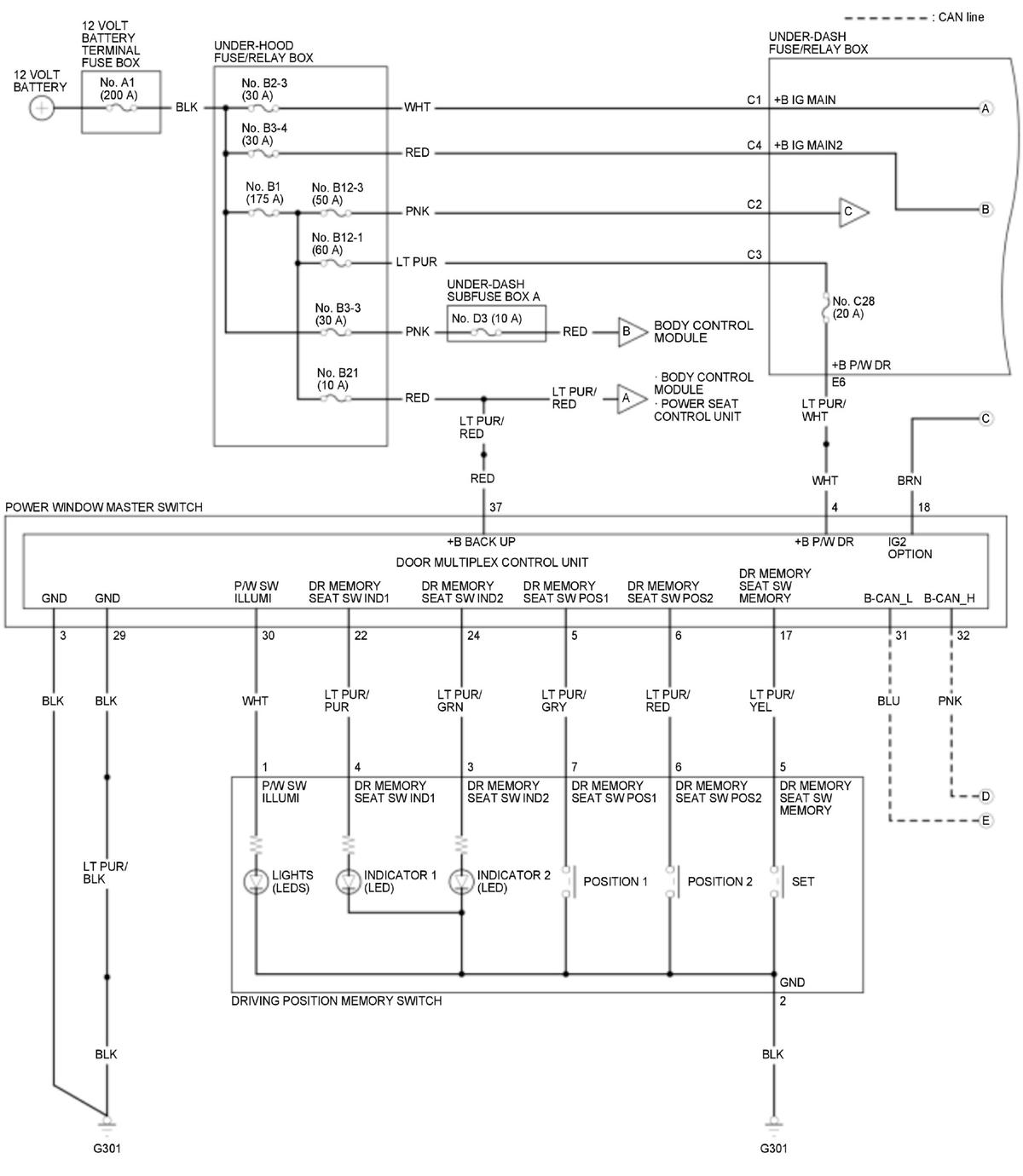

Driving Position Memory System (DPMS) Circuit Diagram

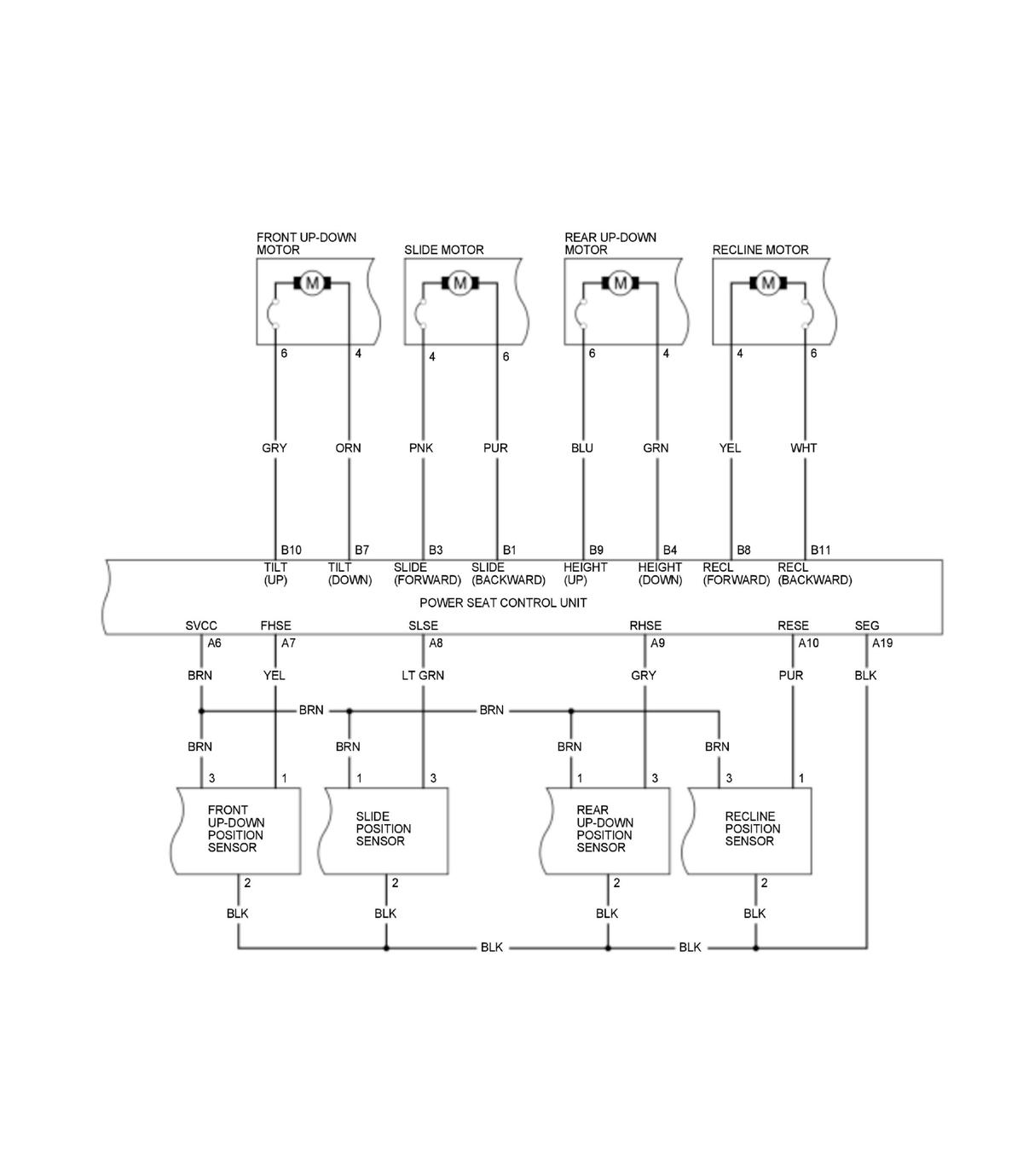

Driver's Power Seat
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
