Intake Manifold Removal and Installation (K20C2)
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View
Intake Manifold

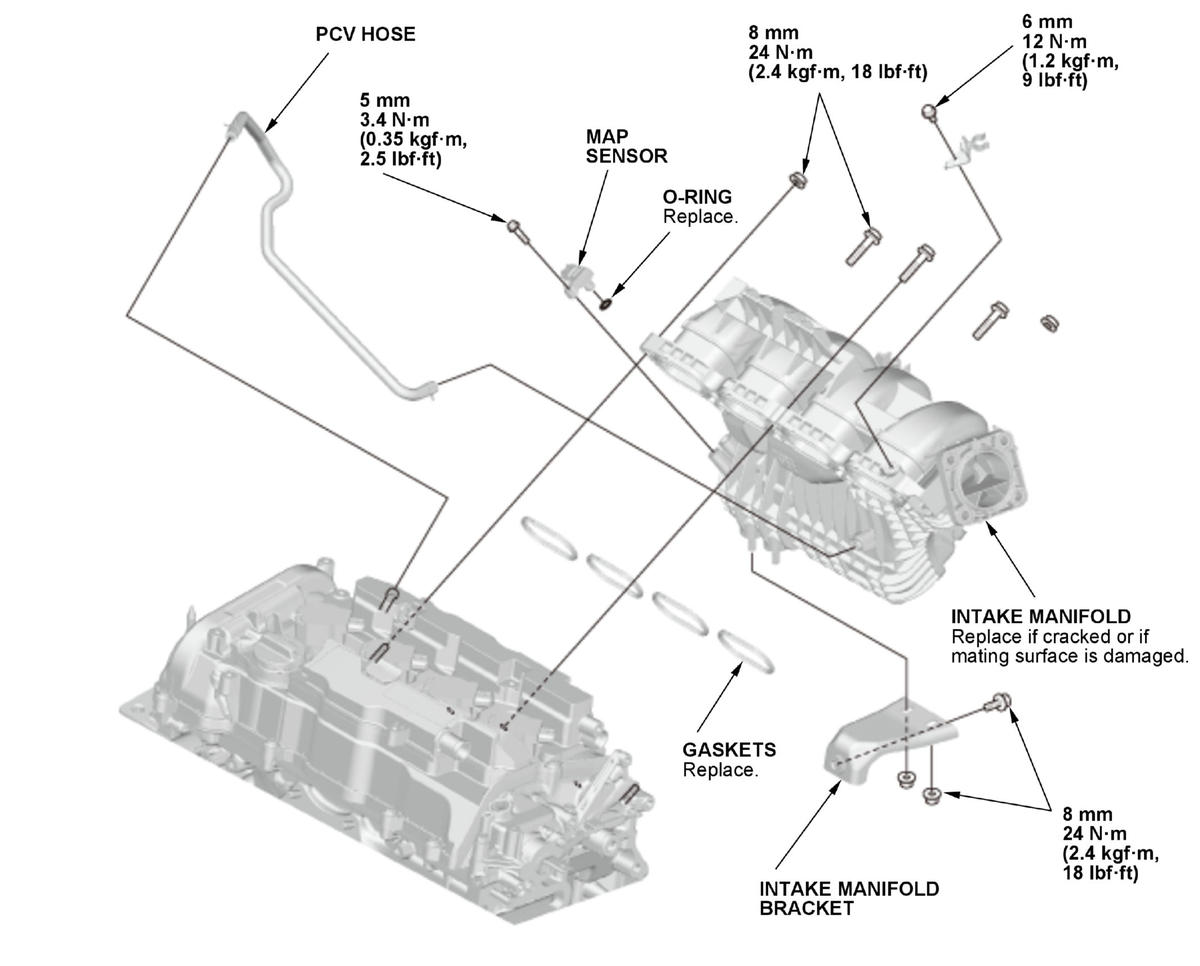

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications (K20C2)
Courtesy of HONDA, U.S.A., INC.
