Description
>>
Driving Support System
>>
Function Failure Indication
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

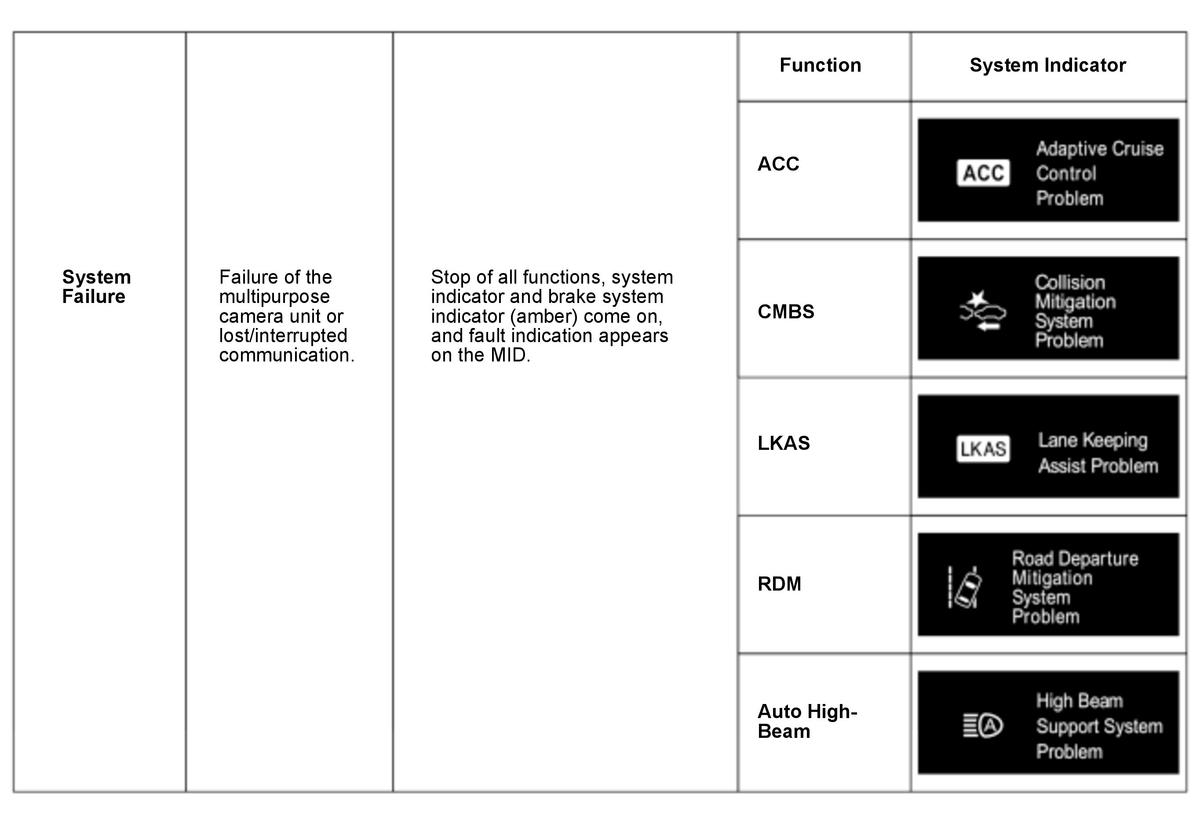

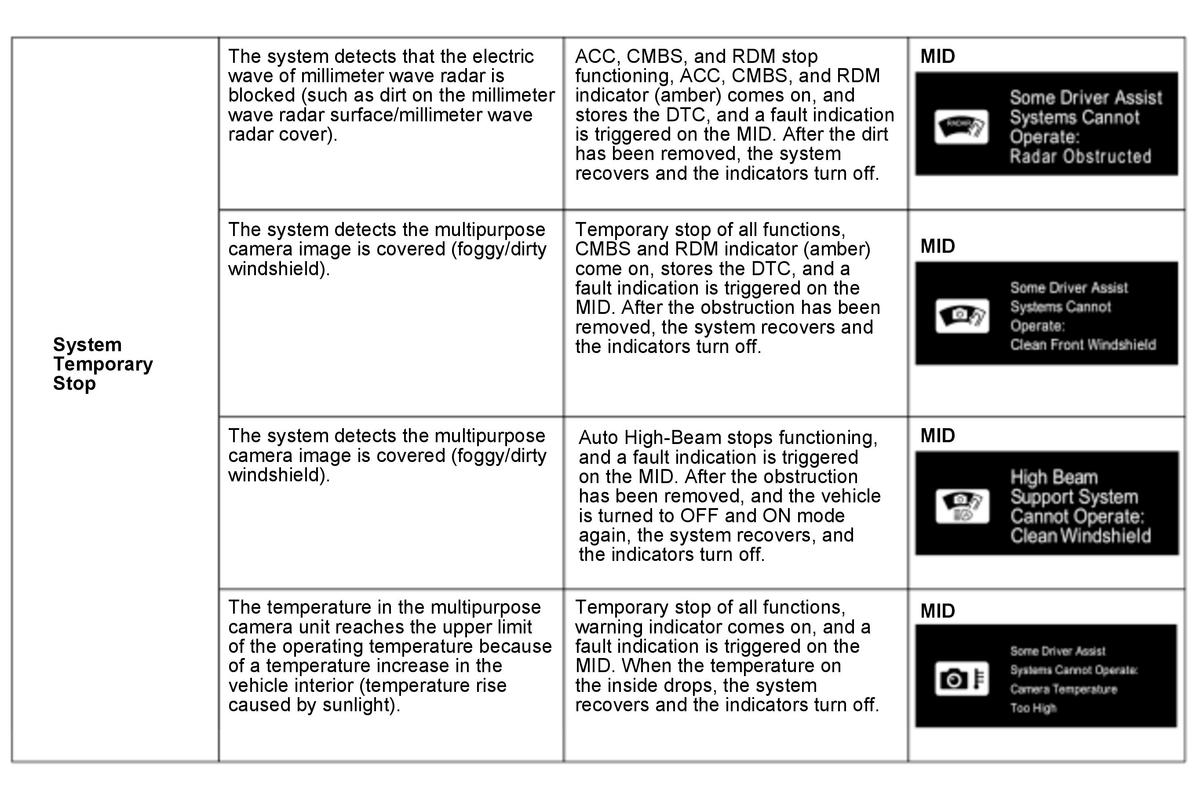

Function Failure Indication
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
