Water Passage Removal and Installation (10-Speed A/T): Installation

NOTE:

• Where icon is shown for further information continue to the information below.
• When installing the water passage, use the flange bolts included with the water passage gasket kit.

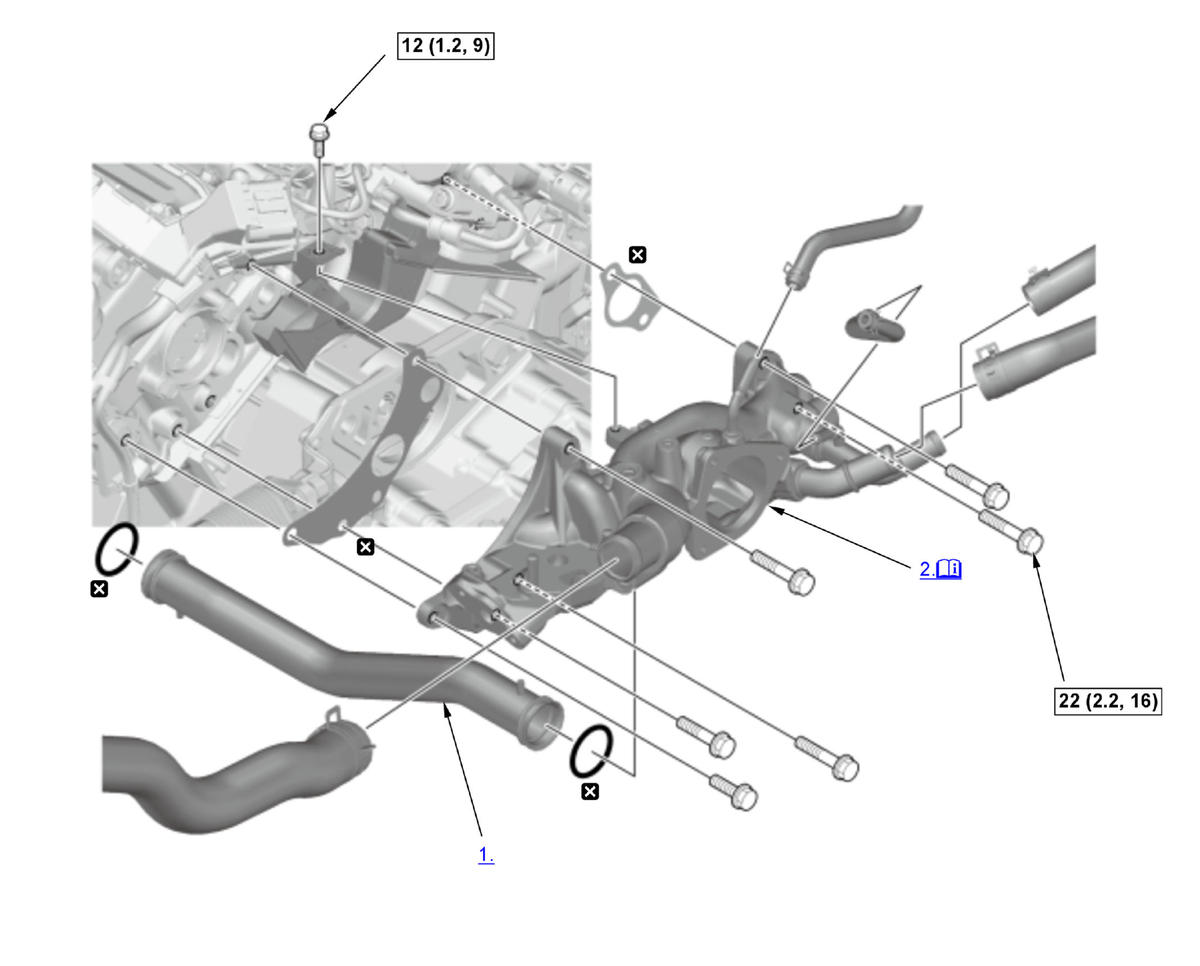

Fig 1: Water Passage Replacement Components With Torque Specifications (10-Speed A/T)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Connecting Pipe - Install
2. Water Passage - Install

   Courtesy of HONDA, U.S.A., INC.

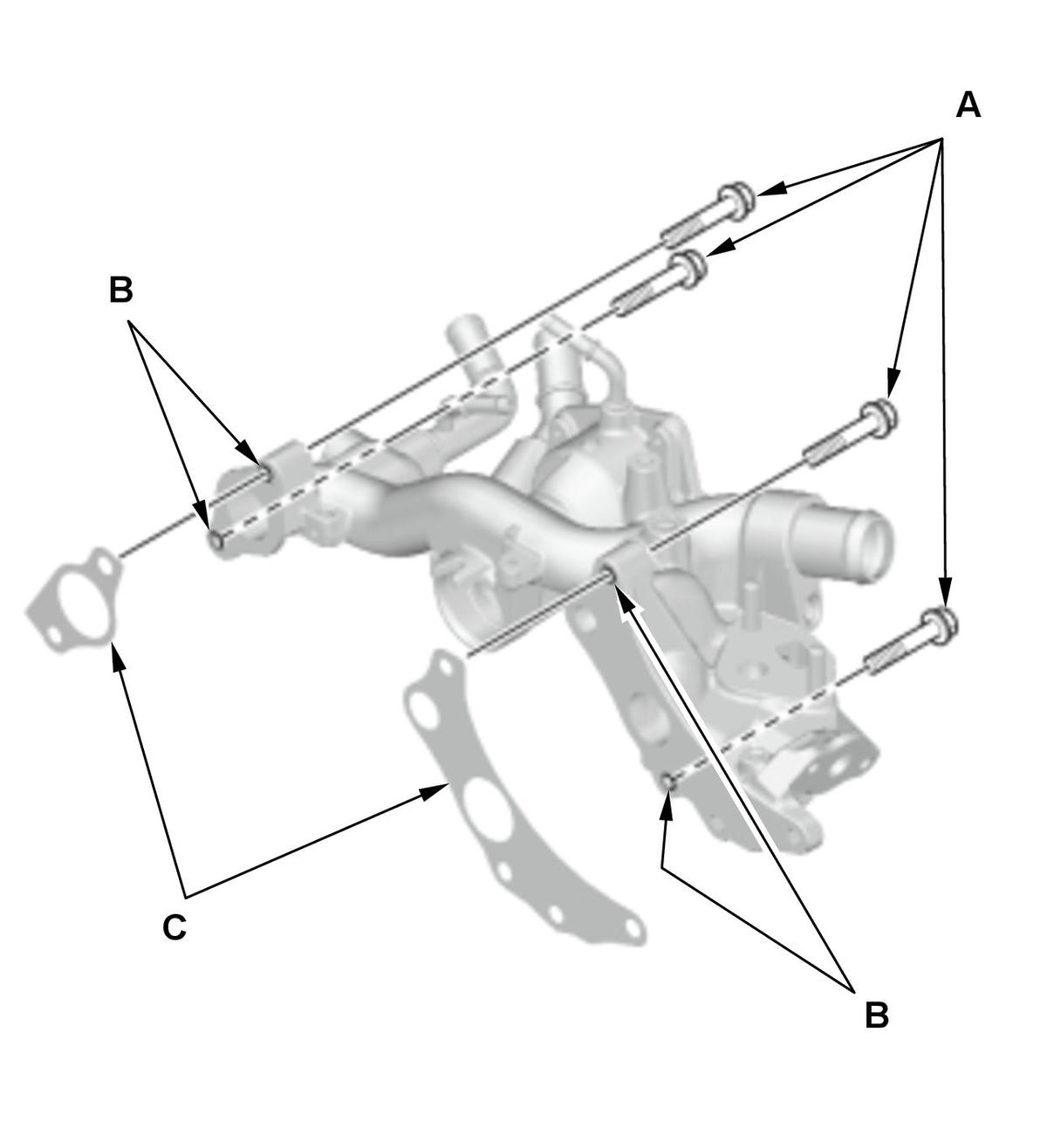

   1. Insert the flange bolts (A), through the mounting hole (B) of the water passage and through the gaskets (C). 2. Align the water passage to the cylinder head and thread the bolts. 3. Insert the remaining 2 bolts and tighten all of the flange bolts to the specified torque.

3. ECT Sensor 1 - Install
4. EGR Valve and EGR Pipe A - Install
5. Thermostat - Install
6. High Pressure Fuel Pump Cover - Install
7. Intake Manifold and Intake Manifold Base - Install
8. Throttle Body - Install
9. Starter - Install
10. Engine Coolant - Refill
