Circuit Diagram

Keihin PCM

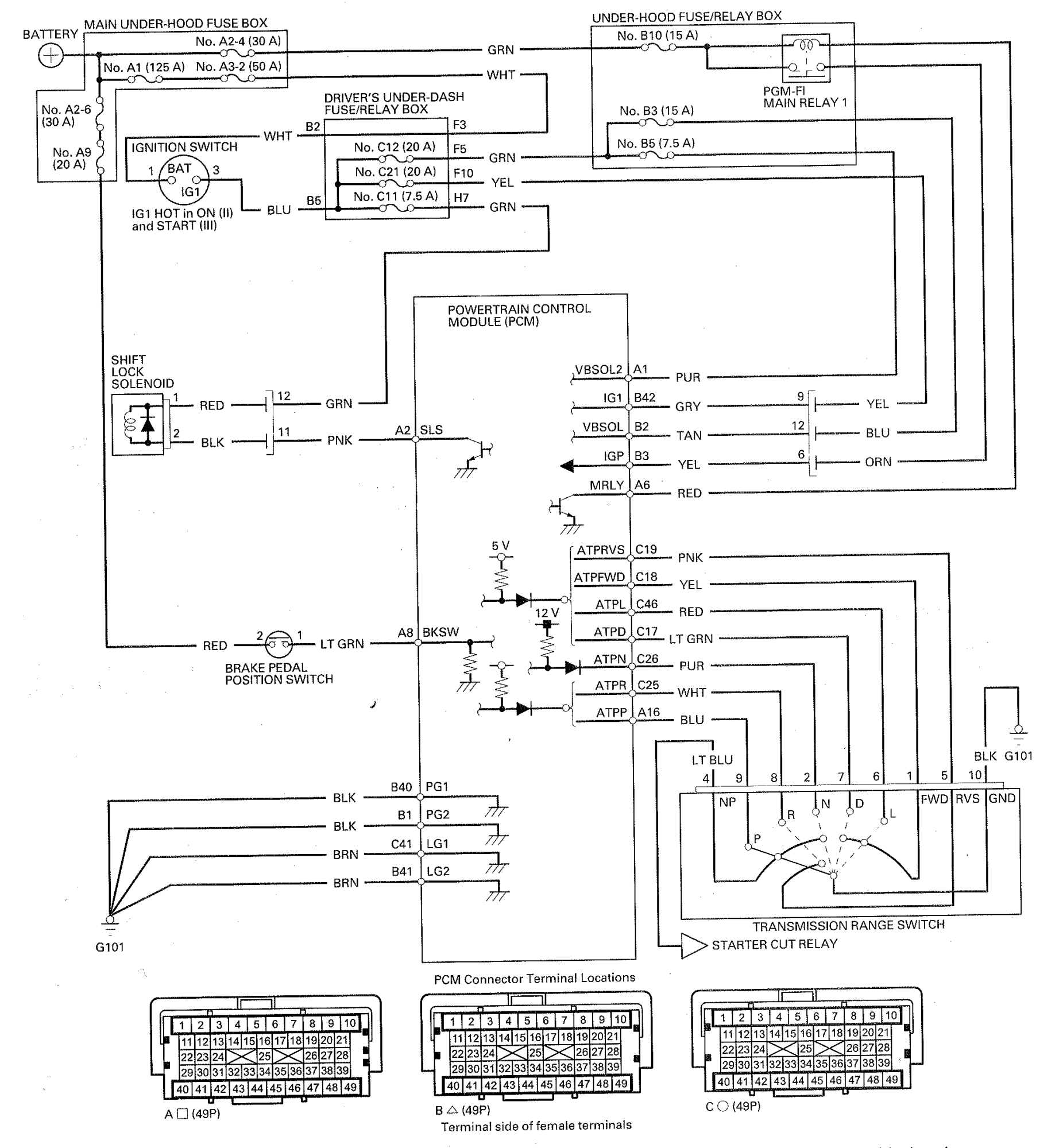

Fig 1: A/T Interlock System Circuit Diagram (Keihin PCM)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to General Troubleshooting Information for more details.

Continental PCM

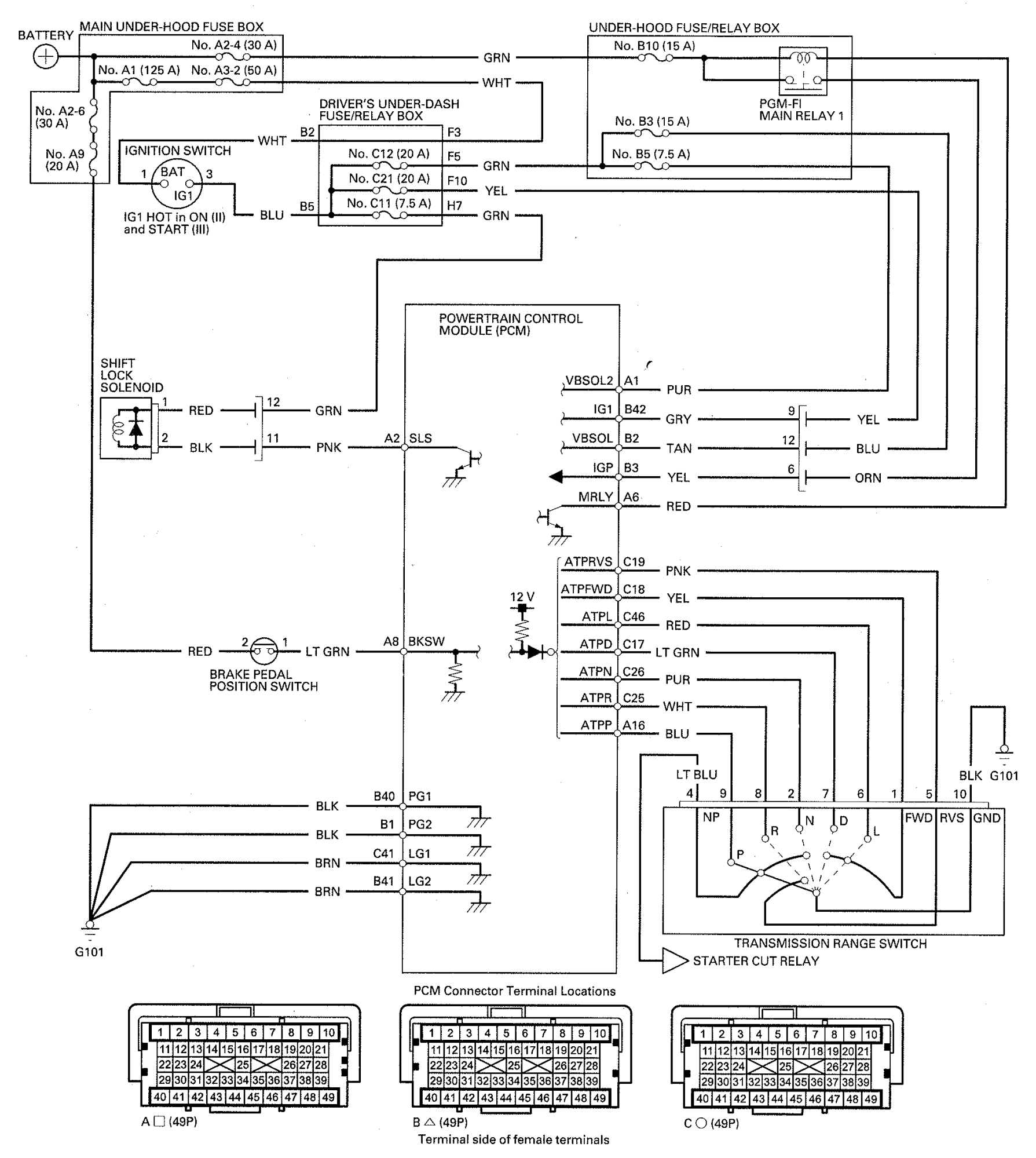

Fig 2: A/T Interlock System Circuit Diagram (Continental PCM)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to General Troubleshooting Information for more details.
