Steering Tie-Rod End Ball Joint Boot Replacement: Notes

Special Tools Required

Image Description/Tool Number
GHH106947Courtesy of HONDA, U.S.A., INC.
Ball Joint Remover, 28 mm 07MAC-SL00202
GHH106944Courtesy of HONDA, U.S.A., INC.
Ball Joint Thread Protector, 12 mm 07AAF-SDAA100

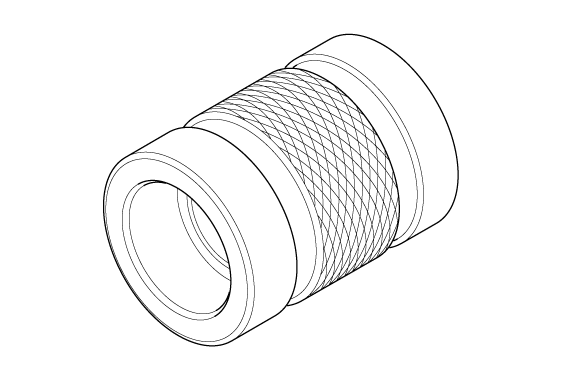

GHH107050Courtesy of HONDA, U.S.A., INC.
Fork Seal Driver Weight 07747-0010100
GHH107051Courtesy of HONDA, U.S.A., INC.
Fork Seal Driver Attachment, 31.2 mm 07747-0010400
