System Warning/Indicator Index

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of HONDA, U.S.A., INC.

NOTE:

Check the diagnostic trouble code (DTC) with the HDS, then refer to the indicated DTC's troubleshooting.

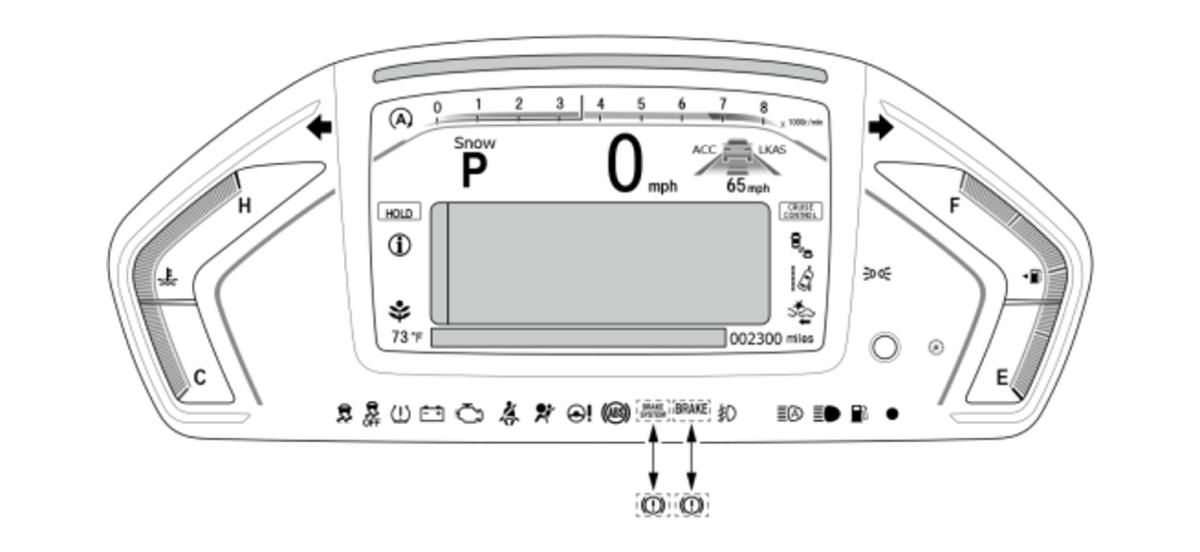

There are some indicators displayed on the multi-information display (MID).

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	SECURITY INDICATOR (Red)	BODY CONTROL MODULE	ONE-PUSH START Backup Control Unit System Information System Check ONE-PUSH START Backup Control Unit System Information Status Log ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 1 ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 2	Keyless access system check Keyless access system symptom troubleshooting information Keyless access system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	KEYLESSACCESSINDICATOR	BODY CONTROL MODULE	ONE-PUSH START PCU DTCs ONE-PUSH START Backup Control Unit DTCs ONE-PUSH START KEYLESS ACCESS CONTROL Unit DTCs	Body control module DTC troubleshooting index Keyless access system symptom troubleshooting information Keyless access system symptom troubleshooting index

Indicator

Indicator Name

Fault Detection Unit

HDS System Menu (DTC Check)

Diagnostic Procedure

Courtesy of HONDA, U.S.A., INC.

SECURITY INDICATOR (Red)

BODY CONTROL MODULE

ONE-PUSH START

Backup Control Unit

System Information

System Check

ONE-PUSH START Backup Control Unit System Information Status Log

ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 1

ONE-PUSH START KEYLESS ACCESS CONTROL Unit KEYLESS ACCESS System Information System Check 2

Courtesy of HONDA, U.S.A., INC.

KEYLESSACCESSINDICATOR

BODY CONTROL MODULE

ONE-PUSH START

PCU

DTCs

ONE-PUSH START Backup Control Unit DTCs

ONE-PUSH START KEYLESS ACCESS CONTROL Unit DTCs

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	12 VOLTCHARGING SYSTEM INDICATOR (Red)	PCM	PGM FI DTCs/Freeze Data	Fuel and emissions systems general troubleshooting information Fuel and emissions systems DTC troubleshooting index Fuel and emissions systems symptom troubleshooting index Charging system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	MALFUNCTION INDICATOR LAMP (MIL) (Amber)	PCM	PGM FI DTCs/Freeze Data	Fuel and emissions systems general troubleshooting information Fuel and emissions systems DTC troubleshooting index Fuel and emissions systems symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	EPS INDICATOR (Amber)	EPS CONTROL UNIT	EPS DTCs/Freeze Data	EPS system general troubleshooting information EPS system DTC troubleshooting index EPS system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	SRS INDICATOR (Red)	SRS UNIT	SRS SRS/SWS DTCs	SRS general troubleshooting information SRS DTC troubleshooting index SRS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	VSA INDICATOR (Amber)	VSA MODULATOR- CONTROL UNIT	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	VSA OFF INDICATOR (Amber)	VSA MODULATOR- CONTROL UNIT	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	ABS INDICATOR (Amber)	VSA MODULATOR- CONTROL UNIT	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR (Red)	VSA MODULATOR- CONTROL UNIT	ABS/TCS/VSA DTCs	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR (Red)	VSA MODULATOR- CONTROL UNIT	ABS/TCS/VSA DTCs
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR (Amber)	VSA MODULATOR- CONTROL UNIT MULTIPURPOSE CAMERA UNIT PCM	ABS/TCS/VSA DTCs DRIVING SUPPORT Integrated Driver Support System DTCs PGM FI DTCs/Freeze Data	VSA system general troubleshooting information VSA system DTC troubleshooting index VSA system symptom troubleshooting index Brake system symptom troubleshooting index Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index Fuel and emissions systems general troubleshooting information Fuel and emissions systems DTC troubleshooting index Fuel and emissions systems symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BRAKE SYSTEM INDICATOR (Amber)	VSA MODULATOR- CONTROL UNIT MULTIPURPOSE CAMERA UNIT PCM

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	LOW TIRE PRESSURE/TPMS INDICATOR (Amber)	BODY CONTROL MODULE	TPMS DTCs	TPMS general troubleshooting information TPMS DTC troubleshooting index TPMS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	SHIFT POSITIONINDICATOR	TCM	AT DTCs/Freeze Data	Automatic transmission general troubleshooting information Automatic transmission DTC troubleshooting index Automatic transmission symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	STARTER SYSTEM INDICATOR	PCM	PGM FI DTCs/Freeze Data	Fuel and emissions systems general troubleshooting information Fuel and emissions systems DTC troubleshooting index Fuel and emissions systems symptom troubleshooting index Starting system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	AUTO IDLE STOPSYSTEM INDICATOR	PCM	PGM FI DTCs/Freeze Data	Fuel and emissions systems general troubleshooting information Fuel and emissions systems DTC troubleshooting index Fuel and emissions systems symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	LIGHT CONTROLINDICATOR	BODY CONTROL MODULE	BODY ELECTRICAL Lighting DTCs	Body control module DTC troubleshooting index Exterior lights symptom troubleshooting
Courtesy of HONDA, U.S.A., INC.	POWER SLIDINGDOOR INDICATOR	POWER SLIDING DOOR CONTROL UNIT	BODY ELECTRICAL Power Sliding Door DTCs	Power sliding door system DTC troubleshooting index Power sliding door system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	POWER SLIDINGDOOR INDICATOR	POWER SLIDING DOOR CONTROL UNIT	BODY ELECTRICAL Power Sliding Door DTCs
Courtesy of HONDA, U.S.A., INC.	POWER TAILGATEINDICATOR	POWER TAILGATE CONTROL UNIT	BODY ELECTRICAL Power Tailgate DTCs	Power tailgate system DTC troubleshooting index Power tailgate system symptom troubleshooting
Courtesy of HONDA, U.S.A., INC.	POWER TAILGATEINDICATOR	POWER TAILGATE CONTROL UNIT	BODY ELECTRICAL Power Tailgate DTCs
Courtesy of HONDA, U.S.A., INC.	PARKING SENSOR SYSTEM INDICATOR	PARKING andBACK-UP SENSORCONTROL UNIT	BODY ELECTRICAL Parking Sensor DTCs	Parking and back-up sensor system DTC troubleshooting index
Courtesy of HONDA, U.S.A., INC.	AUTOHIGH-BEAMINDICATOR (Green)	MULTIPURPOSE CAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index High-beam support system general troubleshooting information
Courtesy of HONDA, U.S.A., INC.	LKAS INDICATOR	MULTIPURPOSE CAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index LKAS general troubleshooting information LKAS symptom troubleshooting index

Indicator	Indicator Name	Fault Detection Unit	HDS System Menu (DTC Check)	Diagnostic Procedure
Courtesy of HONDA, U.S.A., INC.	ACC INDICATOR	MULTIPURPOSE CAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index ACC system general troubleshooting information ACC system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	COLLISIONMITIGATIONBRAKINGSYSTEM (CMBS)INDICATOR	MULTIPURPOSE CAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index CMBS general troubleshooting information CMBS symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	ROAD DEPARTUREMITIGATION (RDM)INDICATOR	MULTIPURPOSE CAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index RDM system general troubleshooting information RDM system symptom troubleshooting index
Courtesy of HONDA, U.S.A., INC.	BSI INDICATOR	MULTIPURPOSECAMERA UNIT	DRIVING SUPPORT Integrated Driver Support System DTCs	Driving support system DTC troubleshooting index Driving support system symptom troubleshooting index BSI system general troubleshooting information BSI system symptom troubleshooting index
