Fuel and Emissions Systems Circuit Diagram

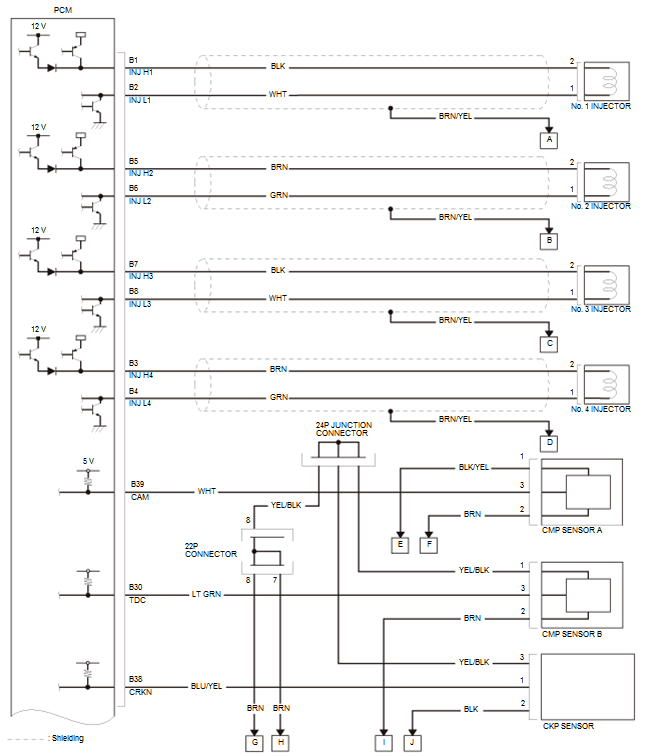

GHH49256

Courtesy of HONDA, U.S.A., INC.

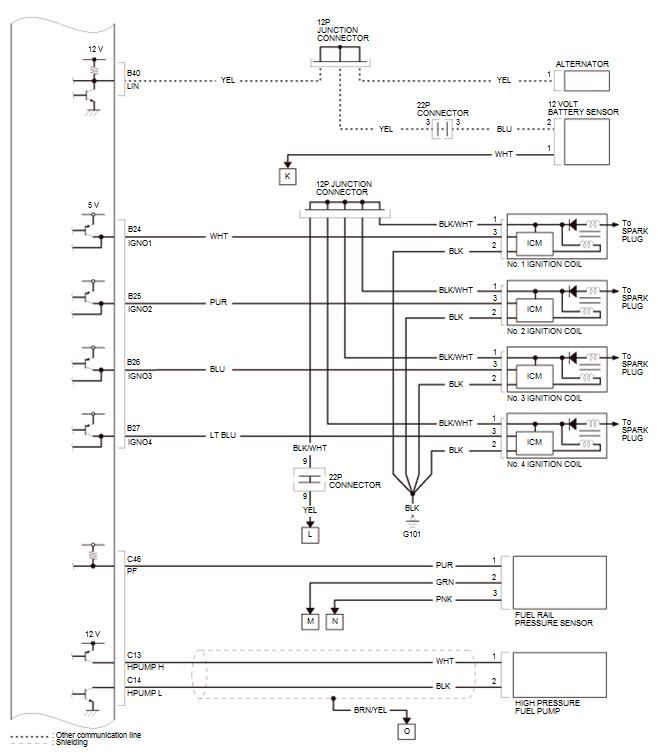

GHH49257

Courtesy of HONDA, U.S.A., INC.

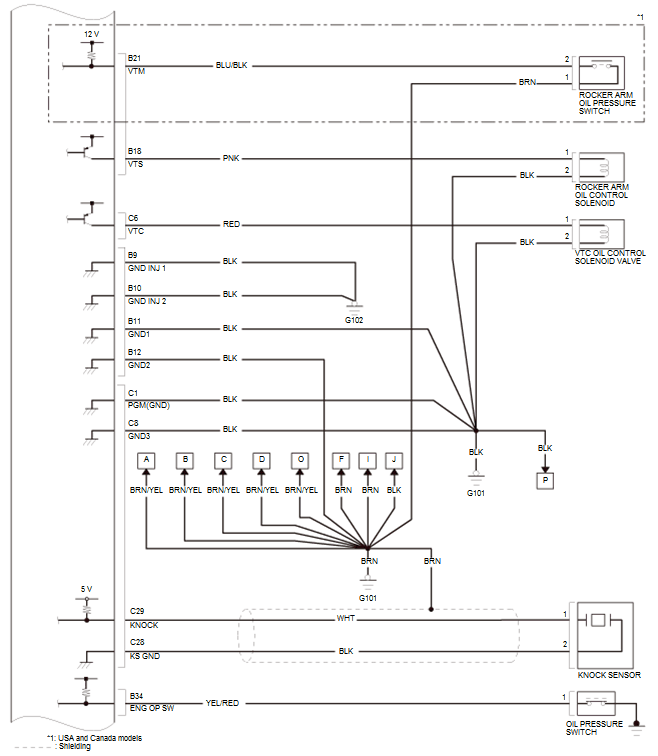

GHH49258

Courtesy of HONDA, U.S.A., INC.

GHH49259

Courtesy of HONDA, U.S.A., INC.

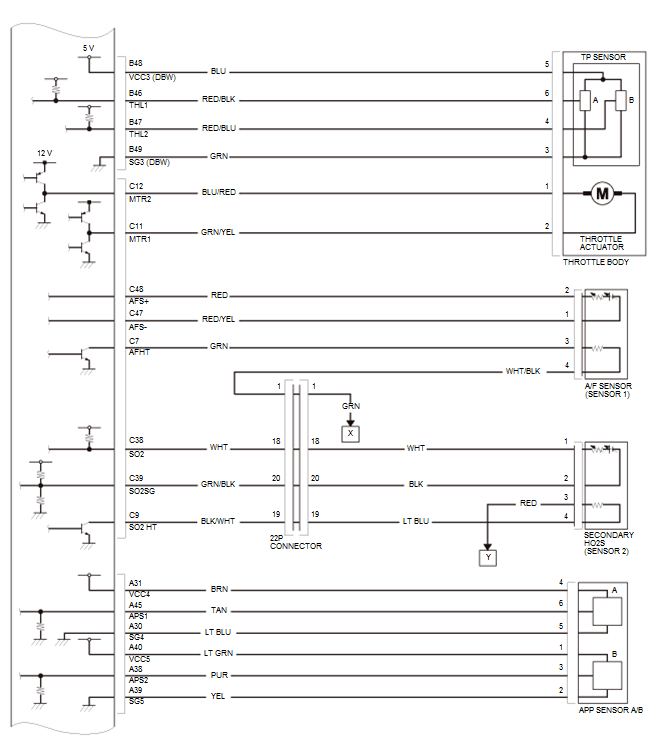

GHH49260

Courtesy of HONDA, U.S.A., INC.

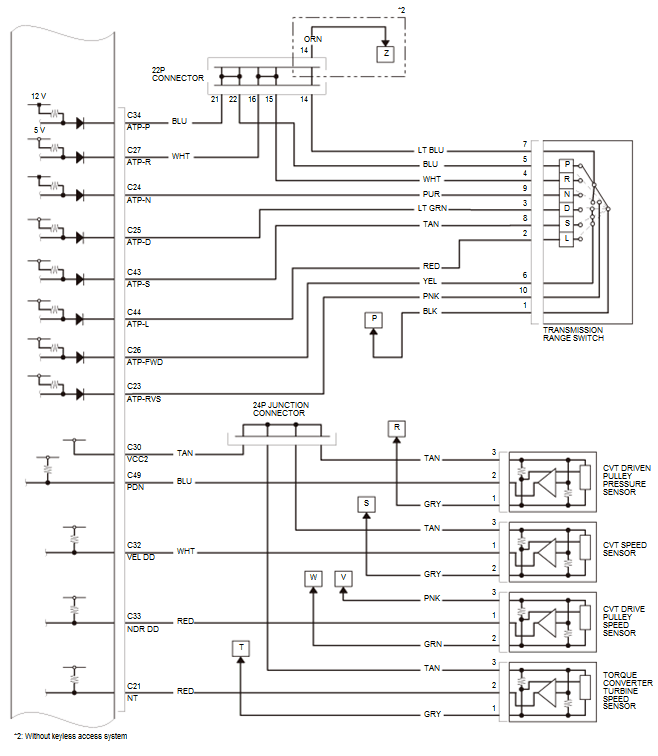

GHH49261

Courtesy of HONDA, U.S.A., INC.

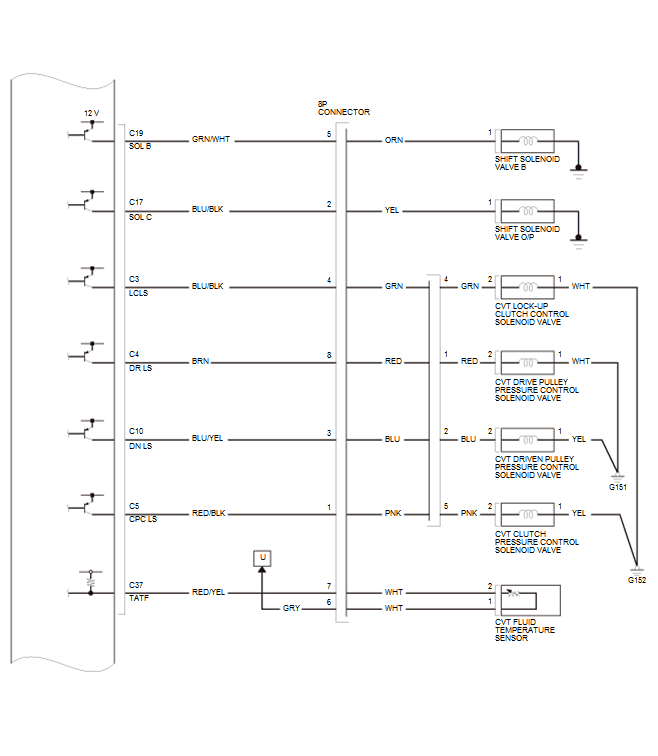

GHH49262

Courtesy of HONDA, U.S.A., INC.

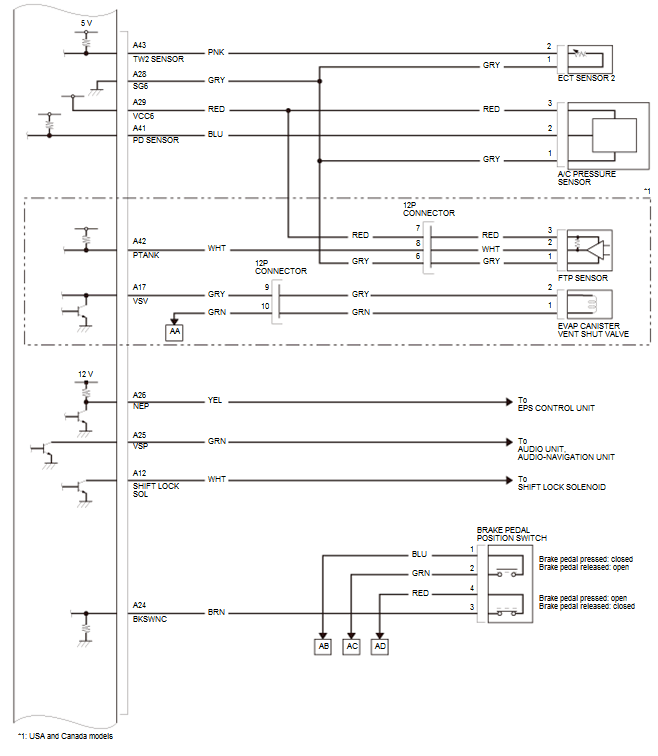

GHH49263

Courtesy of HONDA, U.S.A., INC.

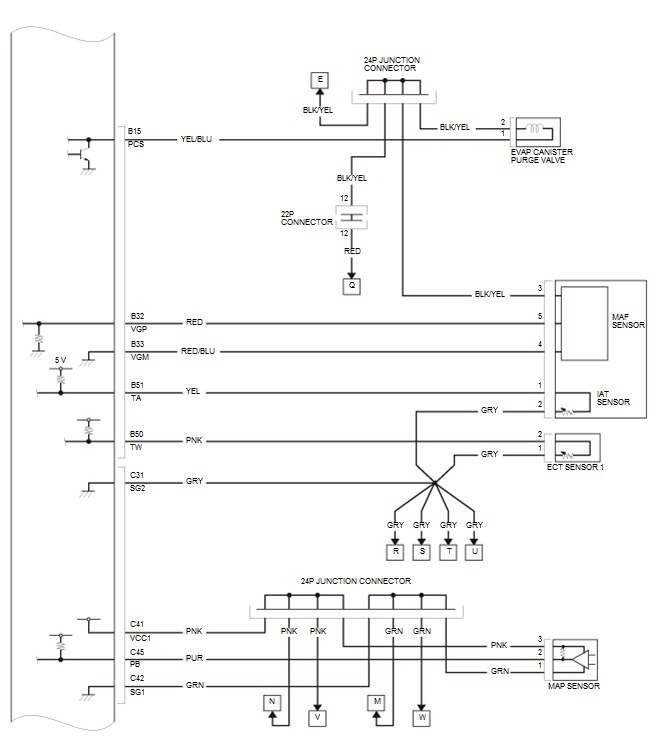

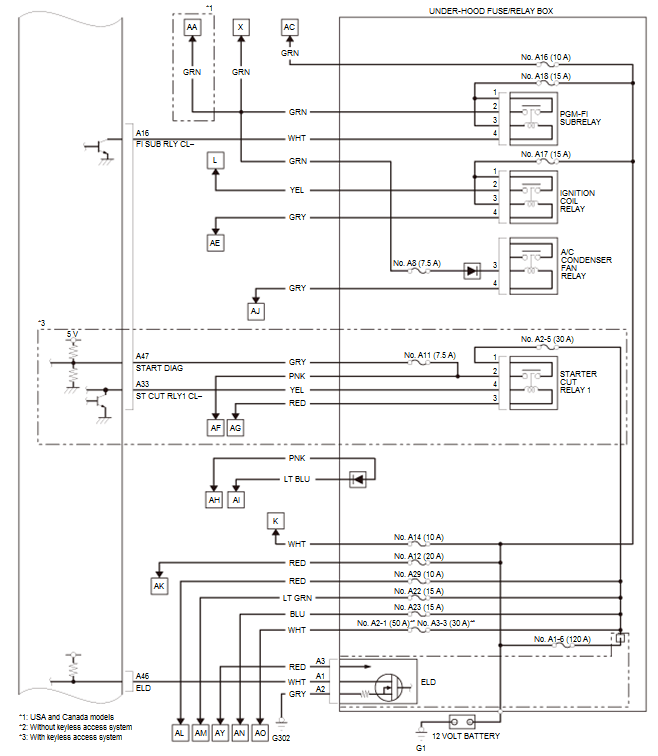

GHH49264

Courtesy of HONDA, U.S.A., INC.

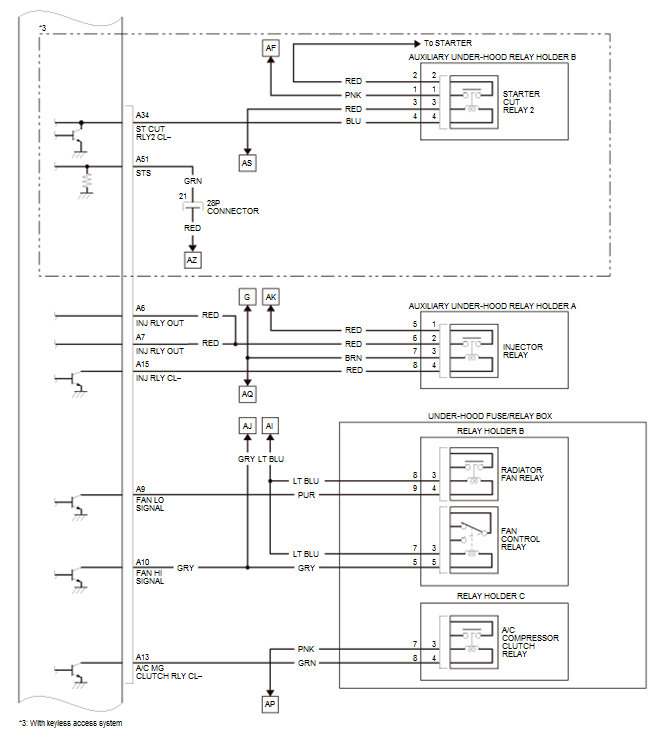

GHH49265

Courtesy of HONDA, U.S.A., INC.

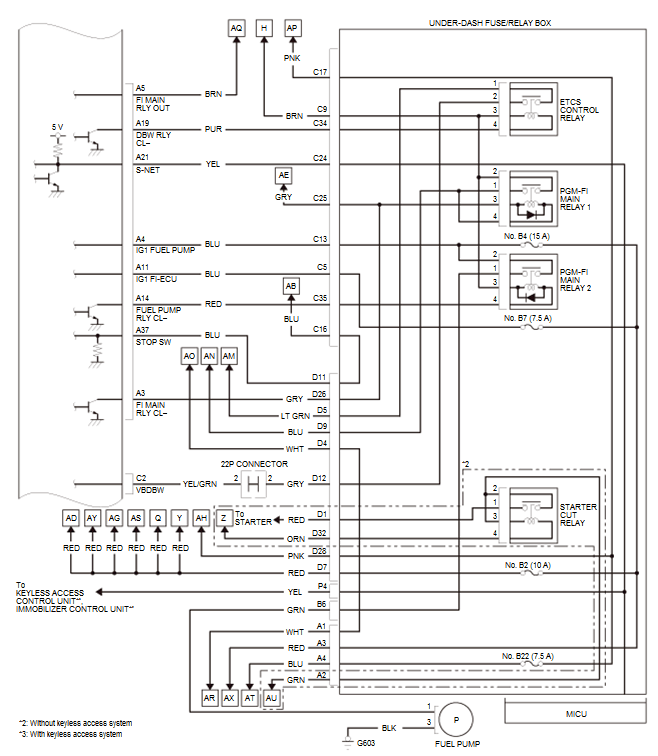

GHH49266

Courtesy of HONDA, U.S.A., INC.

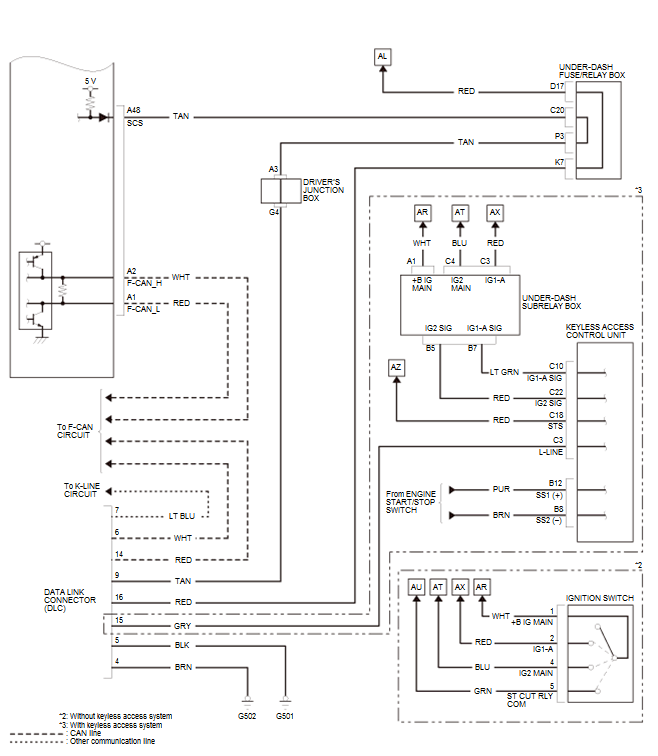

GHH49267

Courtesy of HONDA, U.S.A., INC.
