CR-V EX-L, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Security System / Keyless Entry System - Testing & Troubleshooting
>>
Circuit Diagram
>>
Keyless Access System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

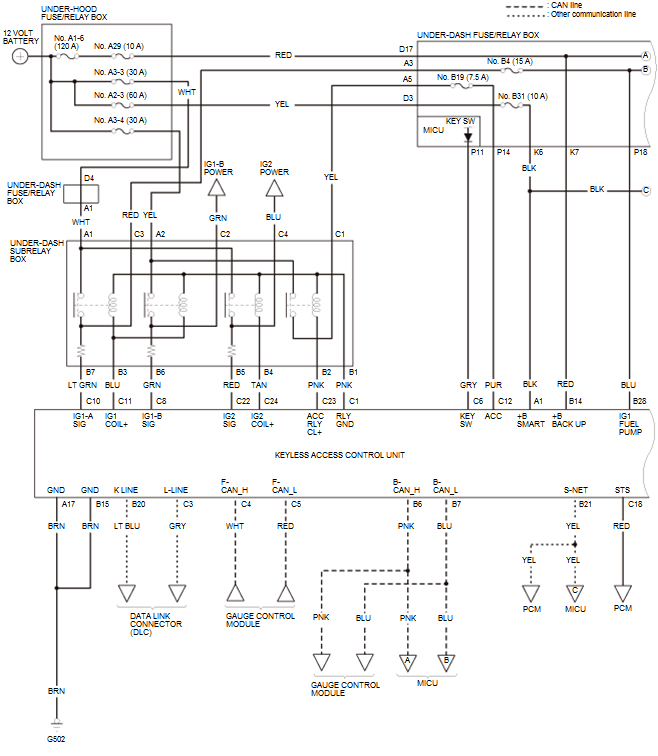

Keyless Access System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.

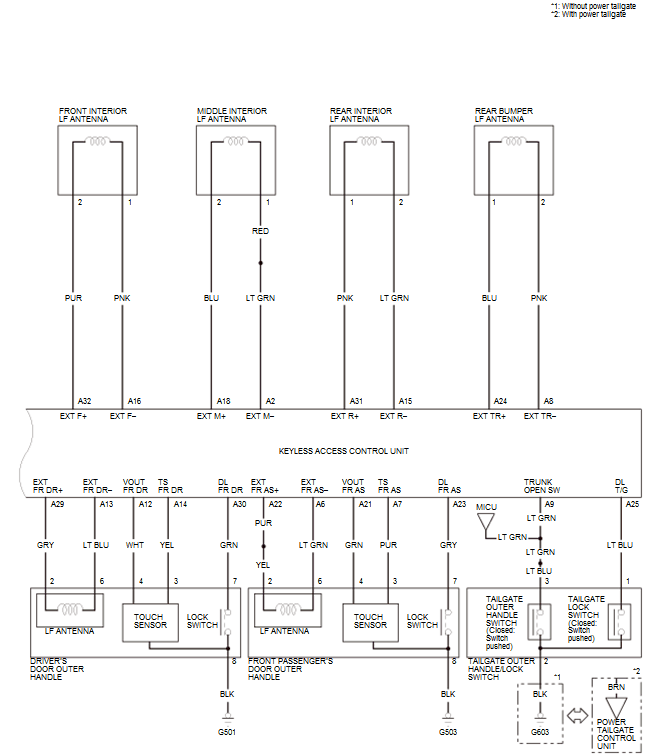

Courtesy of HONDA, U.S.A., INC.

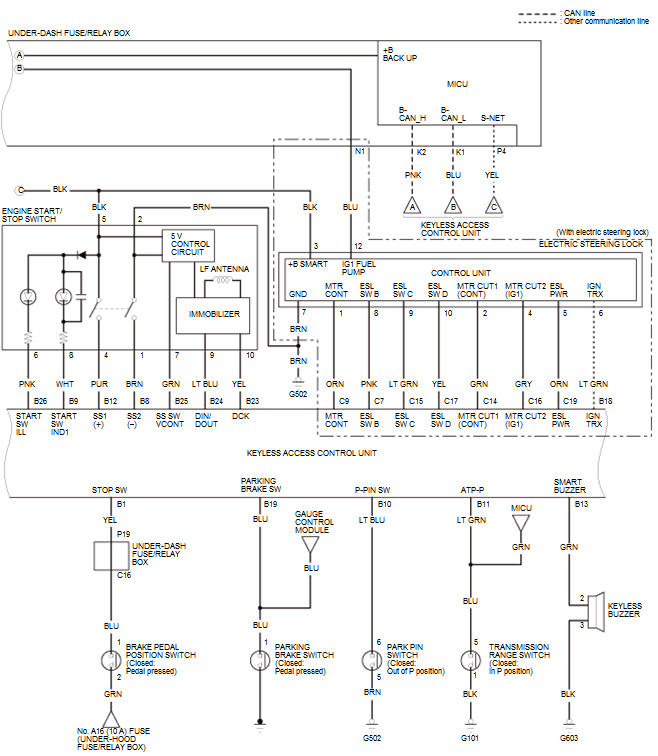

Courtesy of HONDA, U.S.A., INC.
