Front Corner Sensor Replacement

Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 6P connector (A) from the corner sensor (B).
Left side

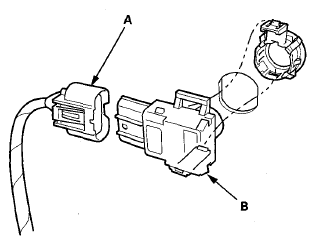

Fig 1: Identifying 6P Connector And Corner Sensor (Left Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

Fig 2: Identifying 6P Connector And Corner Sensor (Right Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Right side: Remove the retainer (C) from the corner sensor.
Install the sensor in the reverse order of removal.
