DTC P0872: Transmission Fluid Pressure Switch C (4th Clutch) Circuit Low: Notes

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the Service Manual Fuel and Emissions Systems' General Troubleshooting Information for more details.

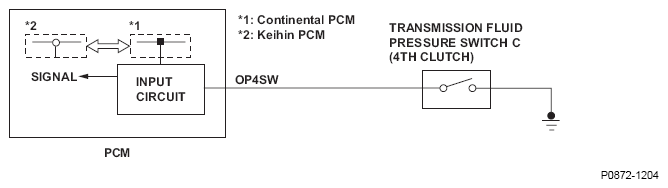

Fig 1: Transmission Fluid Pressure Switch C - Circuit Diagram (4th Clutch)
G08568935Courtesy of AMERICAN HONDA MOTOR CO., INC.

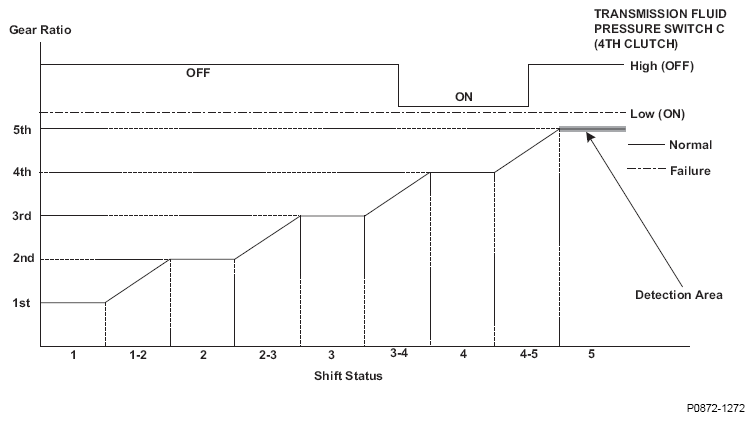

Fig 2: Gear Ratio Versus Shifting Status Graph With Detection Areas
G08568936Courtesy of AMERICAN HONDA MOTOR CO., INC.
