LaneWatch Camera Aiming: Notes
Special Tools Required
Description/Tool Number
Courtesy of HONDA, U.S.A., INC.

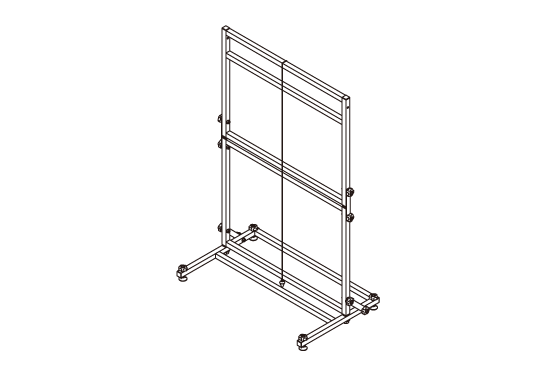

Lane Watch Aiming Stand Set 070AK-T2AA100
Courtesy of HONDA, U.S.A., INC.

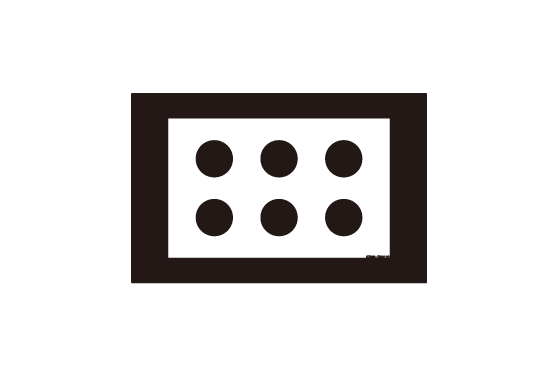

Aiming Marker 070AK-T2AA110
Courtesy of HONDA, U.S.A., INC.
