Symptom Troubleshooting Using Malfunctioning Circuit Functions

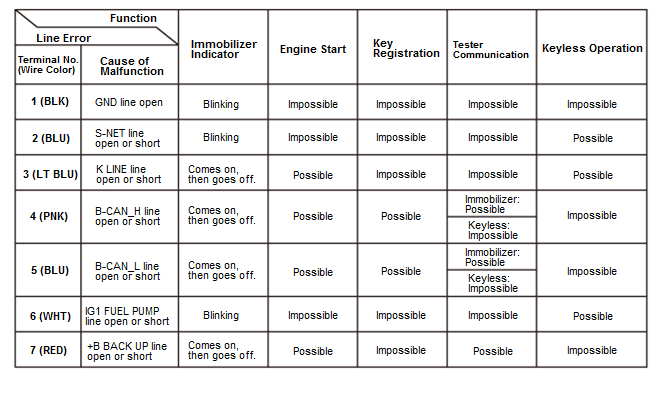

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line (s) that should be checked in the table:

Courtesy of HONDA, U.S.A., INC.
