Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Security System & Keyless Entry System - Testing & Troubleshooting
>>
Circuit Diagram
>>
Keyless Access System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

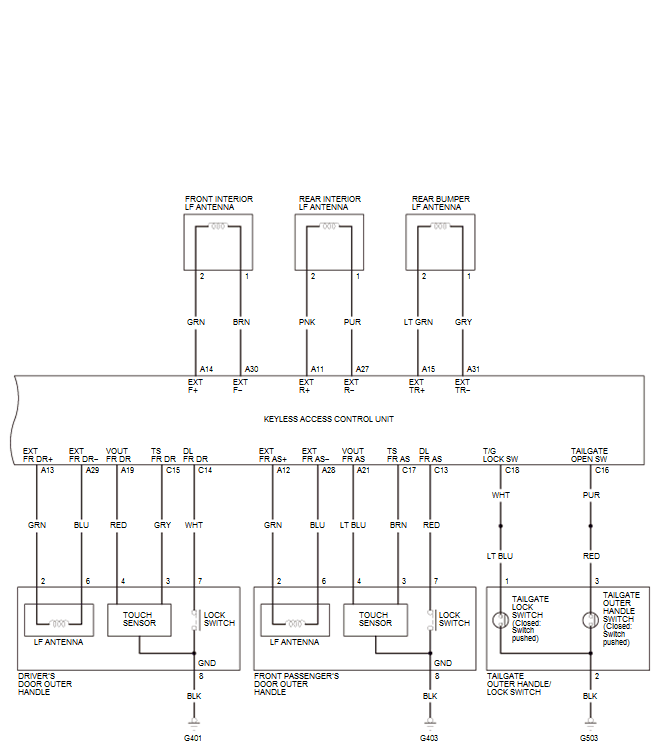

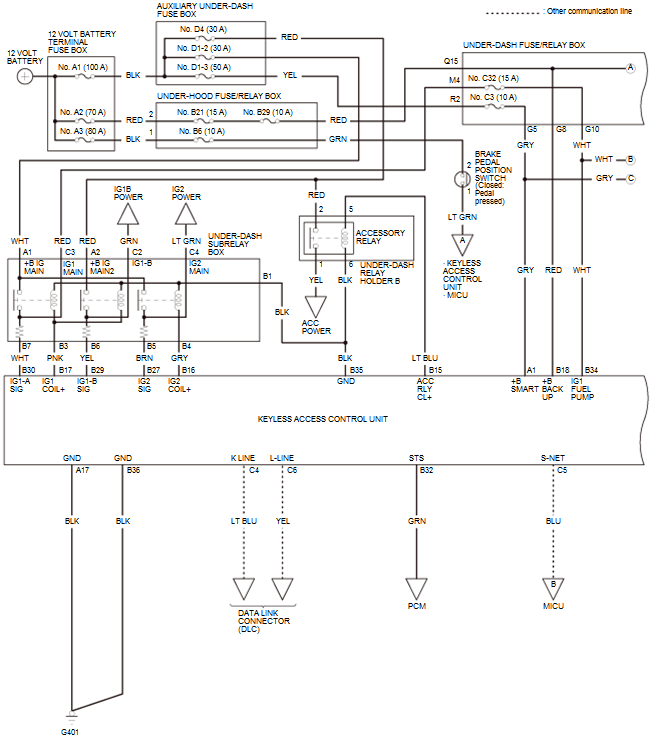

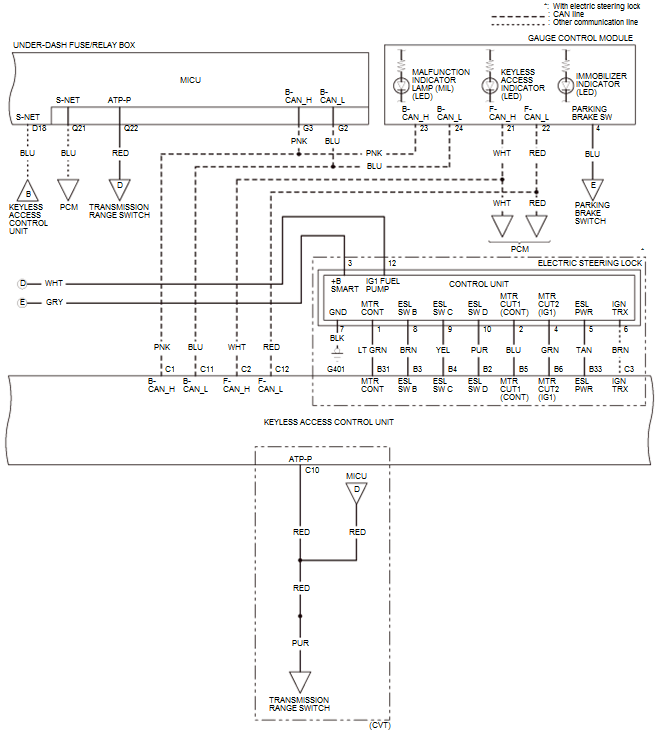

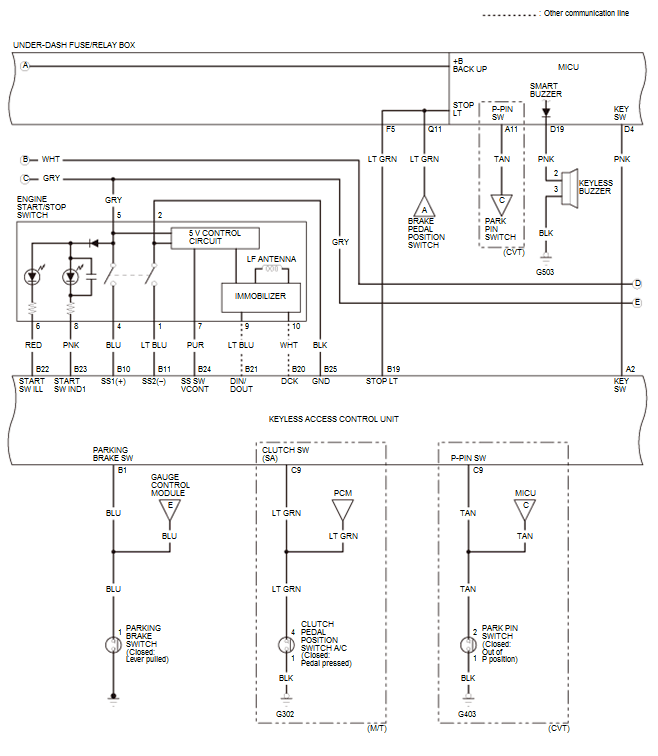

Keyless Access System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
