Side Engine Mount Removal and Installation: Removal
- Remove the PCM (see
PCM REPLACEMENT
).

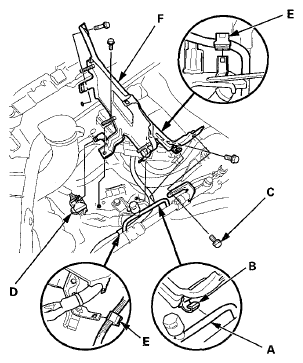

- Remove the front receiver line (A) from the clip (B), and the A/C suction line mounting bracket bolt (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the engine wire harness connector (D), the harness clamps (E), and the PCM bracket (F).
- Lift and support the engine with a jack and a wood block under the oil pan.

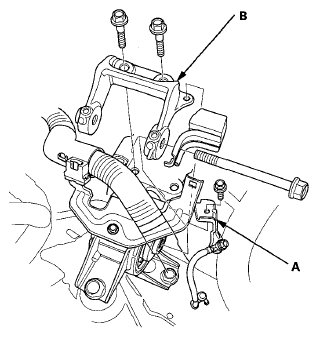

- Remove the ground cable bracket (A), then remove the upper half of the side engine mount bracket (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

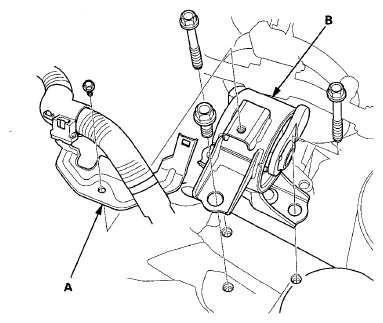

- Remove the wire harness bracket (A) and the side engine mount (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
