Circuit Diagram - Power Seat

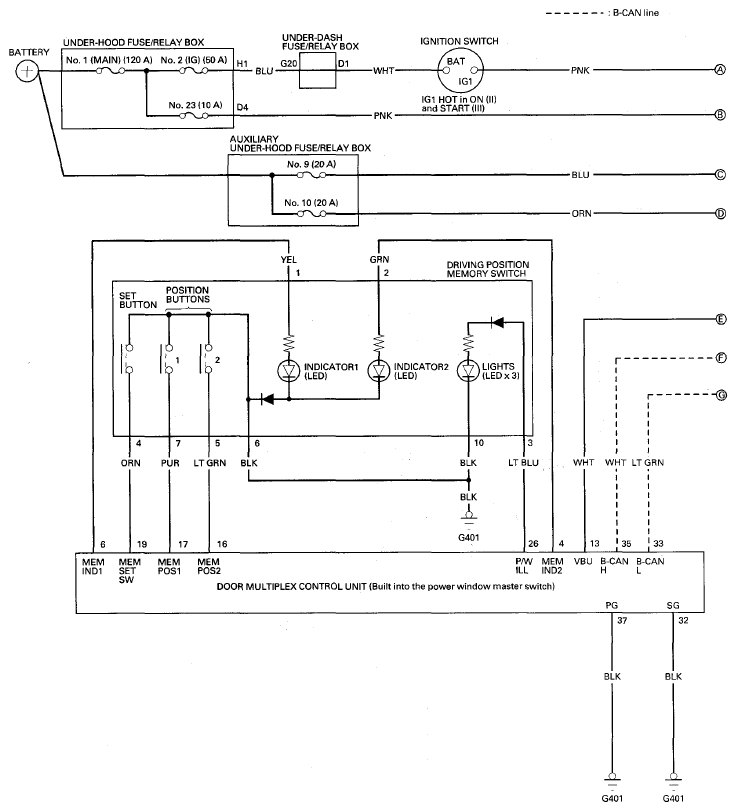

Fig 1: Power Seat - Circuit Diagram (1 Of 4)

G08089344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

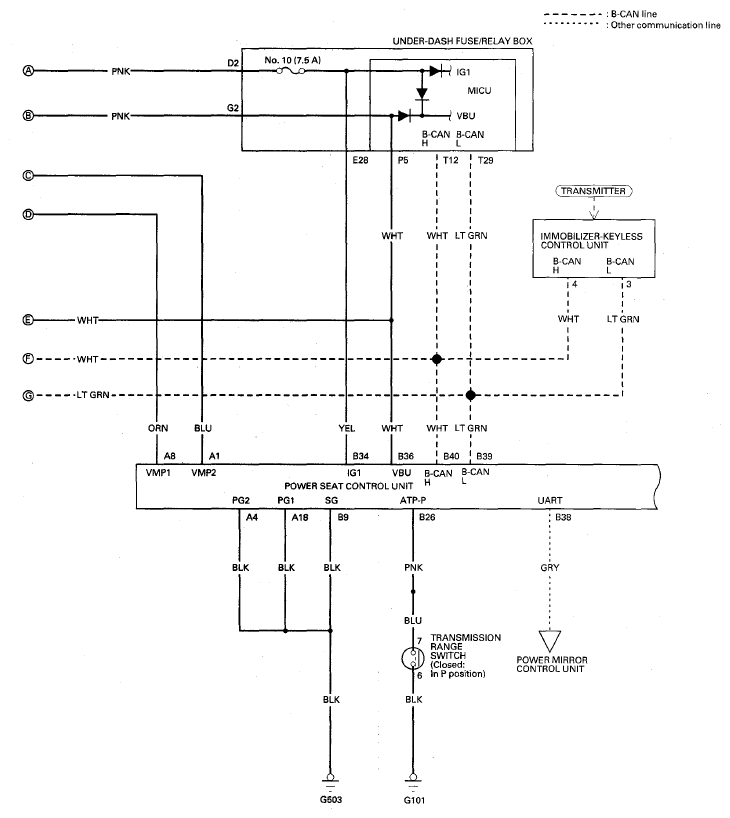

Fig 2: Power Seat - Circuit Diagram (2 Of 4)

G08089345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

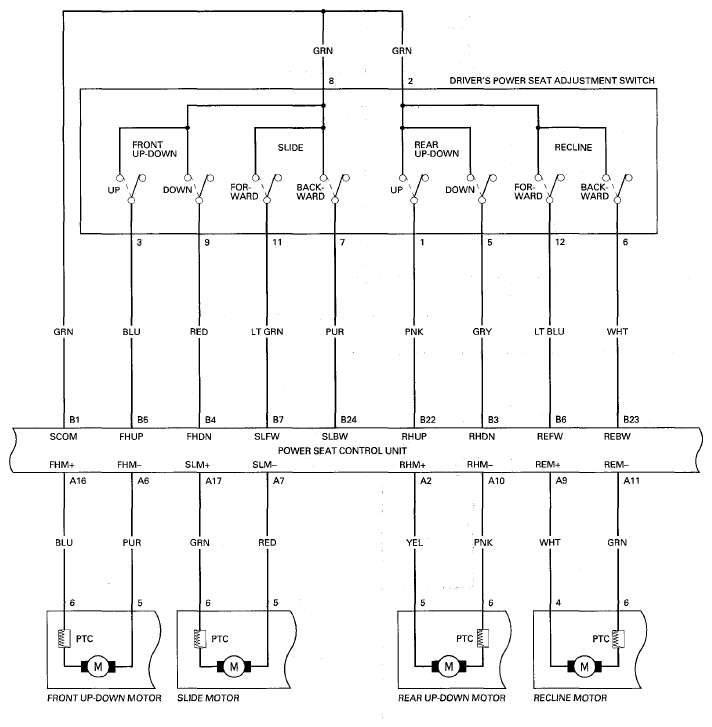

Fig 3: Power Seat - Circuit Diagram (3 Of 4)

G08089346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Power Seat - Circuit Diagram (4 Of 4)

G08089347

Courtesy of AMERICAN HONDA MOTOR CO., INC.
