Without Navigation

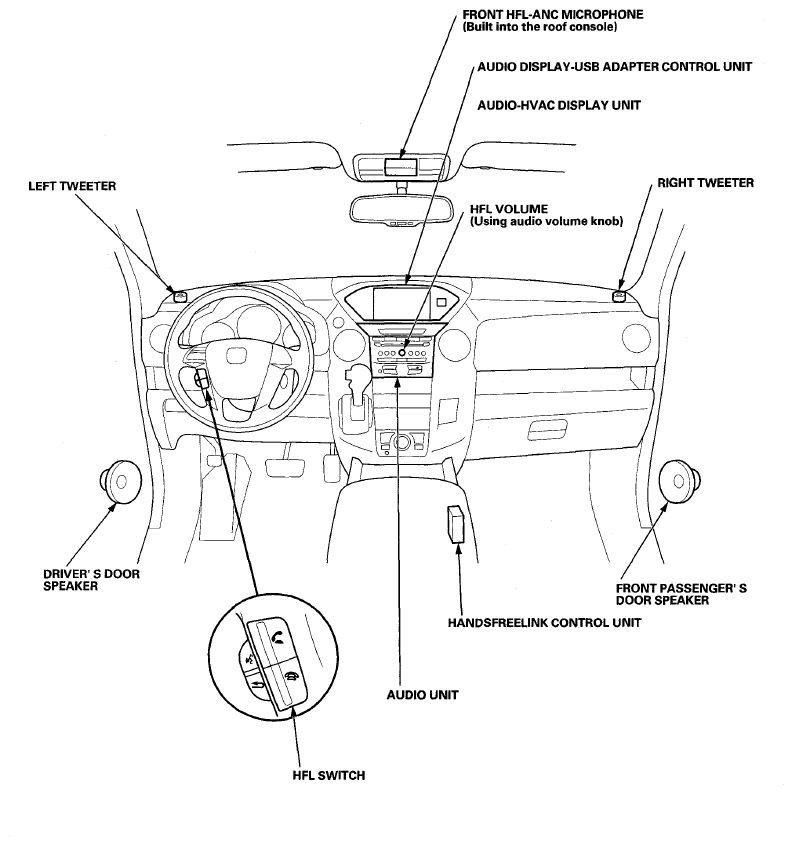

Fig 1: HandsFreeLink System And Related Components Location (Without Navigation)
G08091276Courtesy of AMERICAN HONDA MOTOR CO., INC.
