With Navigation

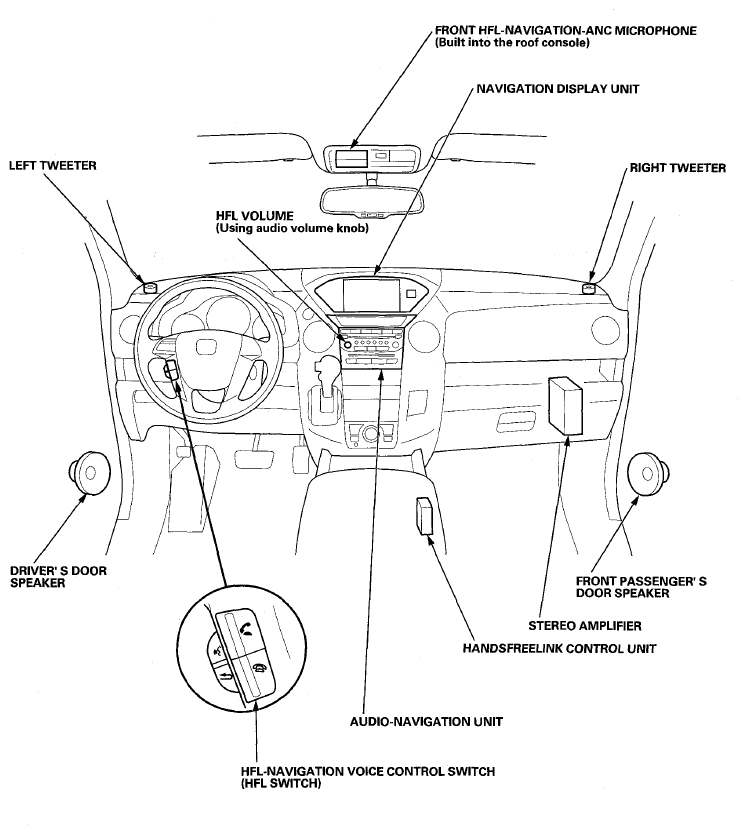

Fig 1: HandsFreeLink System And Related Components Location (With Navigation)
G08091275Courtesy of AMERICAN HONDA MOTOR CO., INC.
