DTC P2270: Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2)) Circuit Signal Stuck Lean: Notes

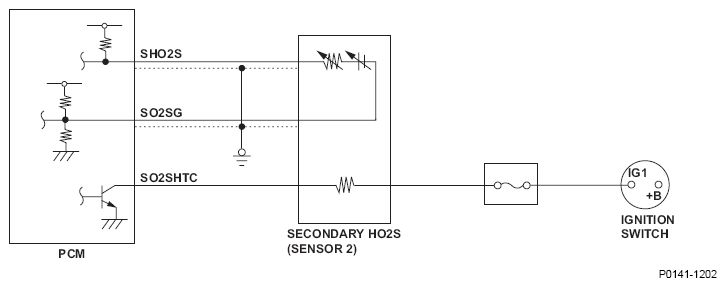

Fig 1: Secondary Heated Oxygen Sensor - Circuit Diagram
G08568673

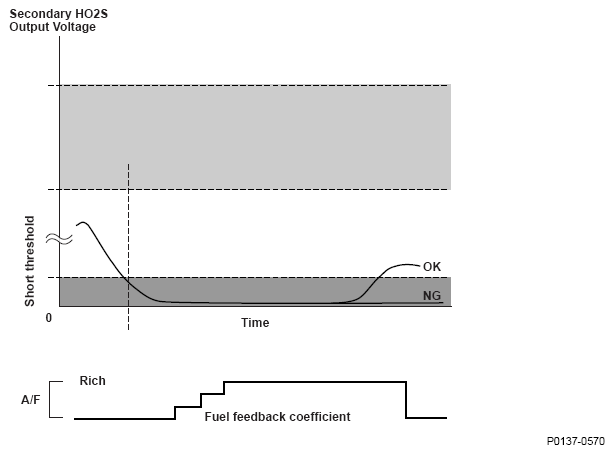

Fig 2: Secondary Heated Oxygen Sensor Output Voltage Graph
G08568674
