Exploded View

  1. Oil Pump Exploded View

    Exploded View

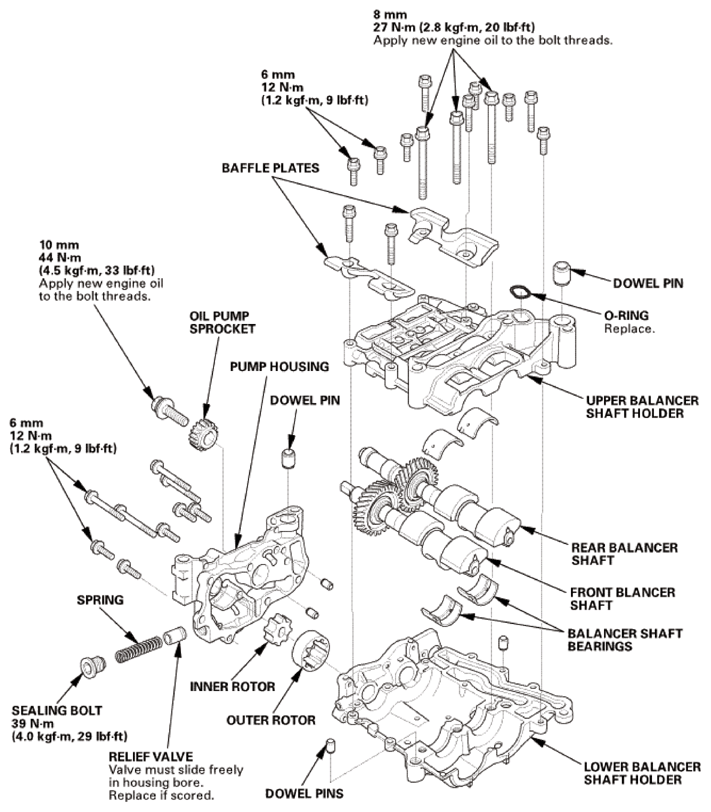

    Fig 1: Exploded View Of Oil Pump With Torque Specification
    G08874668Courtesy of AMERICAN HONDA MOTOR CO., INC.
