Ignition Switch Test: Test

  1. Ignition Switch - Test
    1. Disconnect the connector.
    2. Check for continuity between the terminals in each switch position according to the table.
    3. If continuity is not as specified, replace the ignition switch (A).
    4. Connect the connector.

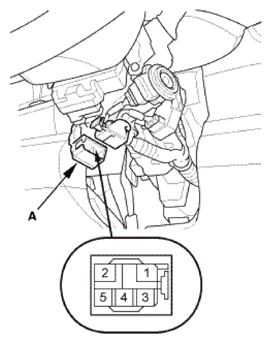

      Fig 1: Identifying Ignition Switch Connector
      G08881385Courtesy of AMERICAN HONDA MOTOR CO., INC.

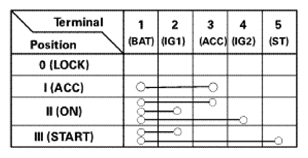

      Fig 2: Ignition Switch Continuity Reference Chart
      G08881386Courtesy of AMERICAN HONDA MOTOR CO., INC.
