  1. Ignition Key Switch - Test
    1. Disconnect the connector.
    2. Check for continuity between the terminals in each switch condition according to the table.
    3. If the continuity is not as specified, replace the steering lock assembly.
    4. Connect the connector.

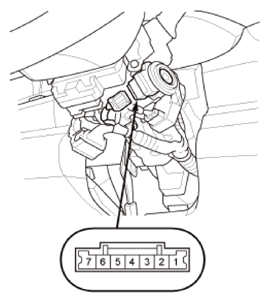

      Fig 1: Identifying Ignition Key Switch Connector
      G08881360Courtesy of AMERICAN HONDA MOTOR CO., INC.
      Fig 2: Ignition Key Switch Continuity Reference Chart
      G08881361Courtesy of AMERICAN HONDA MOTOR CO., INC.
