Ignition Key Light Test: Test

  1. Ignition Key Light - Test
    1. Disconnect the connector.
    2. The LED should come on when power is connected to terminal No. 3 and ground is connected to terminal No. 2.
    3. If the LED does not come on, replace the steering lock assembly.
    4. Connect the connector.

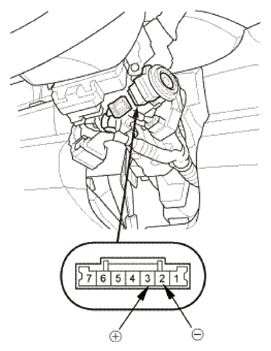

      Fig 1: Identifying Ignition Key Light Connector Terminals
      G08881350Courtesy of AMERICAN HONDA MOTOR CO., INC.
