Power Window Master Switch Removal and Installation: Installation

Front Door Power Window Switch - Driver's Side
1. Install the power window master switch (A).

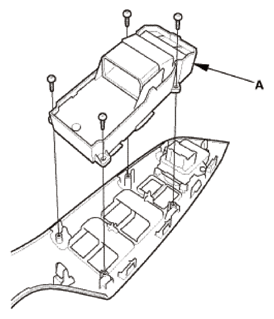

  Fig 1: Identifying Power Window Master Switch And Mounting Bolts
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Front Door Power Window Switch Panel
1. Connect the connectors (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

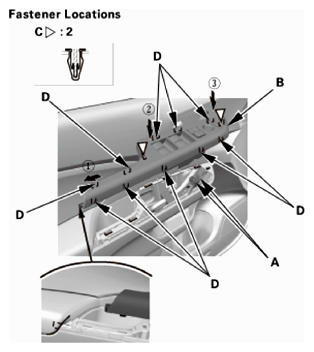

  Fig 2: Installing Power Window Switch Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Power Window Control Unit - Reset
1. DO THE POWER WINDOW CONTROL UNIT RESETTING PROCEDURE .
