Park Pin Switch Test: Test

Park Pin Switch - Test
1. Disconnect the connector.
2. Check for continuity between connector terminals No. 6 and No. 9.
  - There should be no continuity when the shift lever is moved to P and the shift lever button is released.
  - There should be continuity when the shift lever button is pressed or the shift lever is moved out of P.
3. If the continuity is not as specified, the park pin switch is faulty, replace the shift lever/shift cable bracket assembly.
4. Connect the connector.

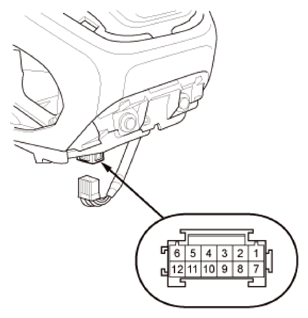

  Fig 1: Identifying Park Pin Switch Connector Terminals
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
