ATF Temperature Sensor Test: Removal

Vehicle Lift
1. Raise the vehicle on a lift, and make sure it is securely supported.
Front Splash Shield
1. Remove the bolts (A), then remove the clips (B) that secure the front inner fender and the front splash shield (C) to the body.
2. From under the front bumper (D), remove the clips (E).
3. From under the body, remove the clips (F), then pull out the front splash shield.

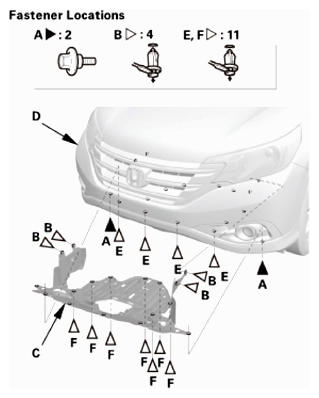

  Fig 1: Identifying Front Inner Fender And Front Splash Shield Bolts And Clips Location
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
