A/T Interlock System - Shift Lock System Circuit Troubleshooting: Notes

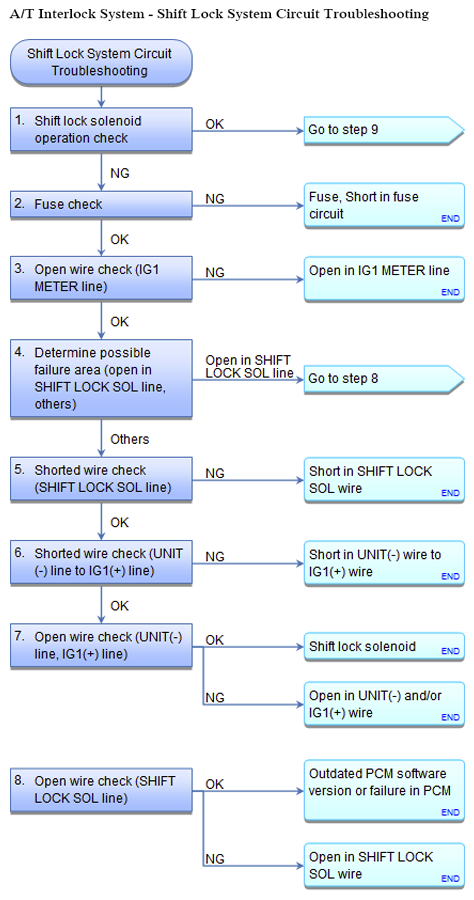

Fig 1: A/T Interlock System - Shift Lock System Circuit Troubleshooting Flow Chart (1 Of 2)
G08868052Courtesy of AMERICAN HONDA MOTOR CO., INC.

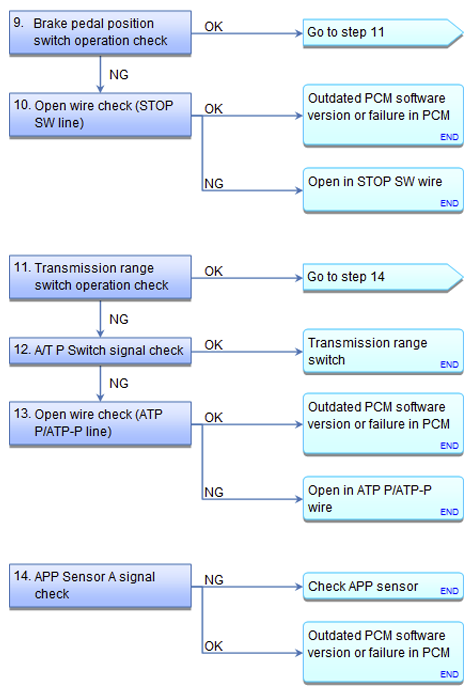

Fig 2: A/T Interlock System - Shift Lock System Circuit Troubleshooting Flow Chart (2 Of 2)
G08868053Courtesy of AMERICAN HONDA MOTOR CO., INC.
