Exploded View

  1. STEERING WHEEL EXPLODED VIEW

    EXPLODED VIEW

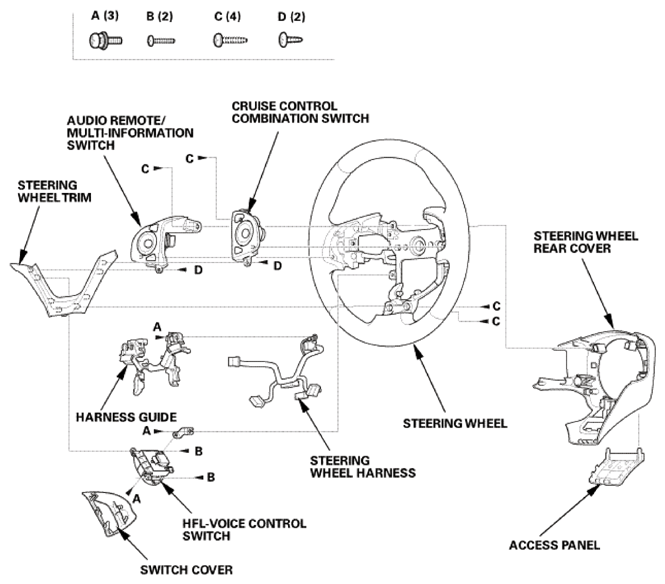

    Fig 1: Exploded View Of Steering Wheel
    G08890618Courtesy of AMERICAN HONDA MOTOR CO., INC.
