Function Diagram

WARNING: This page is about a different car, the 2009 Honda CR-V, 2008 Honda CR-V, and 2007 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

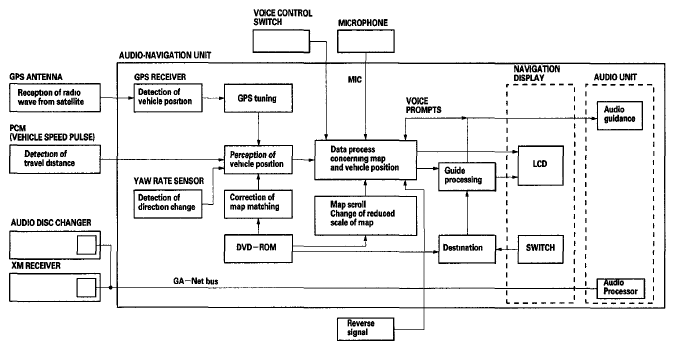

Fig 1: Navigation System Function Diagram
G06612700Courtesy of AMERICAN HONDA MOTOR CO., INC.
