Exploded View

  1. Throttle Body - Disassembly/Reassembly

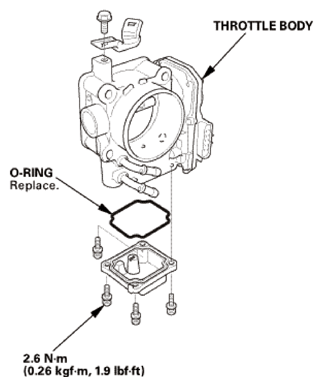

    Fig 1: Throttle Body, O-Ring And Mounting Bolt With Torque Specifications
    G08892832Courtesy of AMERICAN HONDA MOTOR CO., INC.
