Fuel Line Inspection: Inspection

  1. Fuel Line - Inspection
    1. Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

      USA and Canada models

      Fig 1: Identifying Fuel System Lines And Hoses (USA And Canada Models)
      G08875101Courtesy of AMERICAN HONDA MOTOR CO., INC.

      Mexico model

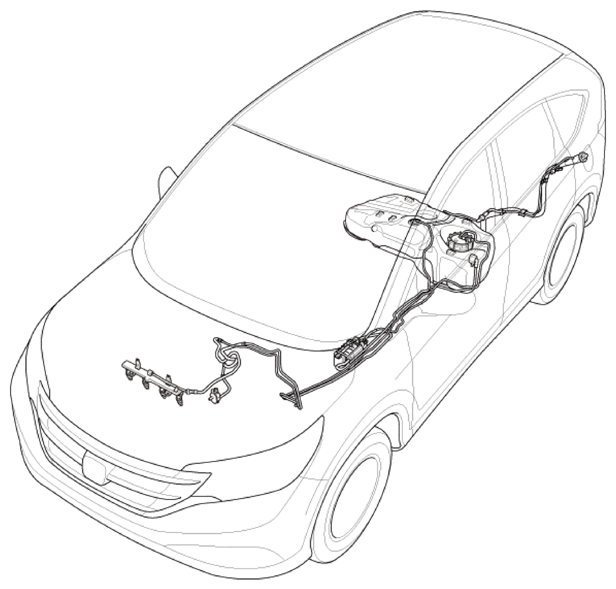

      Fig 2: Identifying Fuel System Lines And Hoses (Mexico Model)
      G08875102Courtesy of AMERICAN HONDA MOTOR CO., INC.
