FTP Sensor Removal and Installation: Installation

  1. FTP Sensor
    1. Install the FTP sensor (A) with a new O-ring (B).

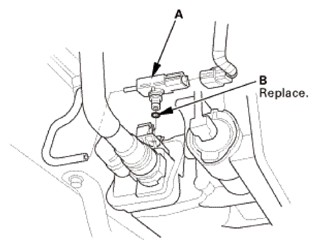

      Fig 1: Identifying FTP Sensor With O-Ring
      G08875064Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Left Middle Floor Undercover
    1. Install the left middle floor undercover (A), then install the bolts (B) and the clips (C, D). Make sure the clips snap into place securely.

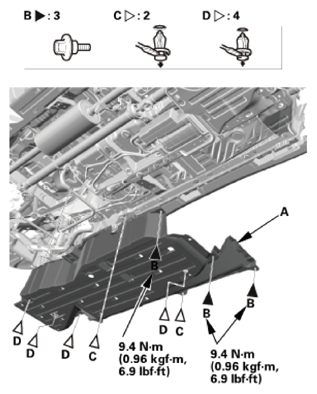

      Fig 2: Left Middle Floor Undercover, Bolts And Clips With Torque Specification
      G08875065Courtesy of AMERICAN HONDA MOTOR CO., INC.
