DTC P062F: PCM Internal Control Module Keep Alive Memory (KAM) Error: Notes
NOTE:
Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information
See HOW TO TROUBLESHOOT THE A/T SYSTEM
or HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS
.
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P062F PCM INTERNAL CONTROL MODULE KEEP ALIVE MEMORY (KAM) ERROR |

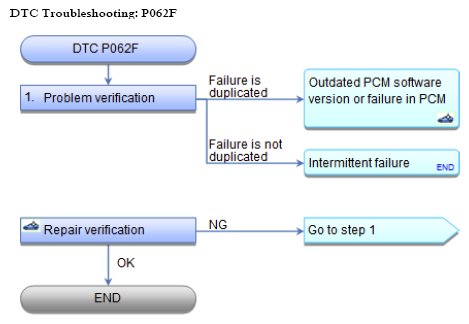

- Problem verification:
- 1. Turn the ignition switch to ON (II).
- 2. Clear the DTC with the HDS See HOW TO TROUBLESHOOT THE A/T SYSTEM or HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS .
- 3. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P062F PCM INTERNAL CONTROL MODULE KEEP ALIVE MEMORY (KAM) ERROR
Is DTC P062F indicated?
YES : The failure is duplicated. Update the PCM See PCM REMOVAL AND INSTALLATION or PCM UPDATE if it does not have the latest software, or substitute a known-good PCM See PCM REMOVAL AND INSTALLATION or PCM UPDATE , then do the repair verification .
NO : Intermittent failure, the system is OK at this time.
