Valve Guide Replacement: Notes

SPECIAL TOOL DESCRIPTION

Image Description/Tool Number
G08886635
Hood Prop Bar 07AAZ-T0AA100
G08886636
Belt Tension Release Tool Snap-on YA9317(1), commercially available
G08886637
O2 Sensor Socket Wrench Snap-on SWR2 or O2 Sensor Wrench
G08886638
Crankshaft Pulley Holder 07AAB-RJAA100
G08886639
Holder Handle 07JAB-001020B
G08886640
Socket, 19 mm 07JAA-001020A or equivalent
G08886641
Valve Spring Compressor Attachment 07757-PJ1010A

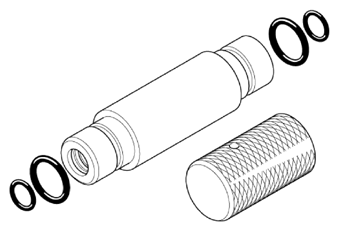

G08886642
Stem Seal Driver 07PAD-0010000
G08886643
Valve Guide Driver, 5.35 x 9.7 mm 07742-0010100
G08886644
Valve Guide Reamer, 5.5 mm 07HAH-PJ7A100
G08886645
Camshaft Lock Pin Set 07AAB-RWCA120
G08886646
Adjuster 07MAA-PR70110
G08886647
Locknut Wrench 07MAA-PR70120
(1) Available through the Honda Tool and Equipment Program 888-424-6857.
