Starter Removal and Installation: Installation

Install the starter, then tighten the mounting bolts (A).
NOTE: Always use a new gasket (B).

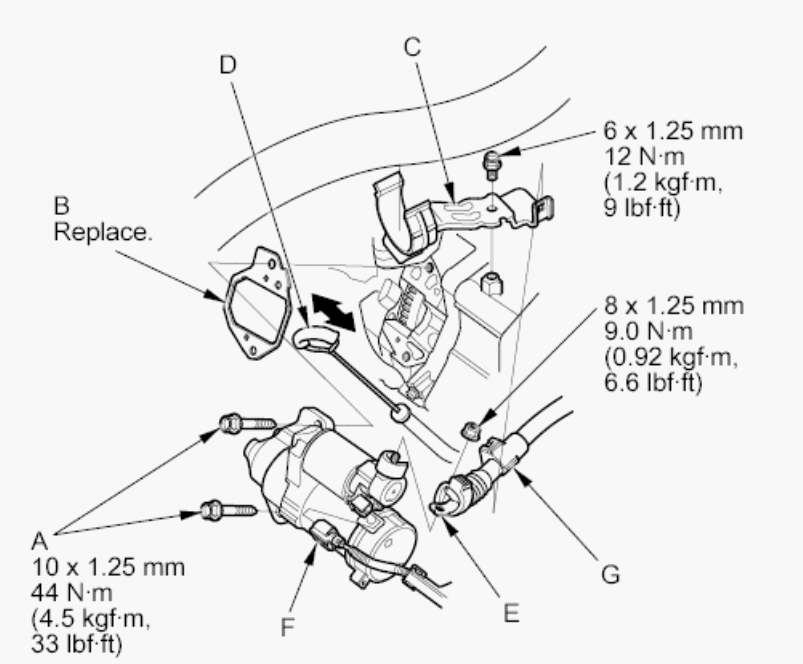

Fig 1: ATF Dipstick And Radiator Hose Bracket With BLK/WHT Wire Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the radiator hose bracket (C) and the ATF dipstick (D).
Connect the positive starter cable (E) and the S terminal connector (F). Make sure the crimped side of the ring terminal faces away from the starter when you connect it.
Install the harness clamp (G).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Start the engine to make sure the starter works properly.
