Canada models

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

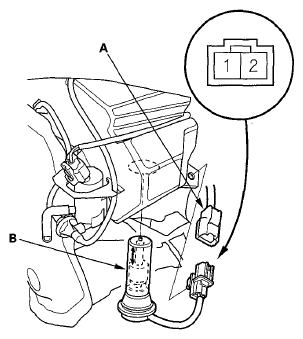

Fig 1: Identifying Washer Fluid Level Switch & 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the washer reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between terminals No. 1 and No. 2 in each float position.
- There should be continuity when the float is down.
- There should be no continuity when the float is up.
If the continuity is not as specified, replace the switch.
