Rocker Arm Oil Pressure Switch Removal/Installation

Disconnect the rocker arm oil pressure switch connector (A).

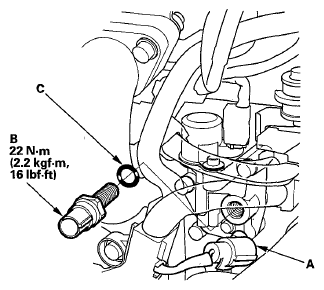

Fig 1: Identifying Rocker Arm Oil Pressure Switch & Connector With O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil pressure switch (B).
Install the parts in the reverse order of removal with a new O-ring (C).
