CVT Input Shaft (Drive Pulley) Speed Sensor Replacement

  1. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  2. Disconnect the CVT input shaft (drive pulley) speed sensor 3P connector (A), then remove the CVT input shaft (drive pulley) speed sensor (B).

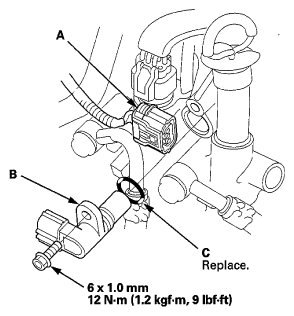

    Fig 1: Locating CVT Input Shaft (Drive Pulley) Speed Sensor 3P Connector, CVT Input Shaft (Drive Pulley) Speed Sensor And O-Ring With Torque Specifications
    G06950991Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new O-ring (C) on a new CVT input shaft (drive pulley) speed sensor, then install the CVT input shaft (drive pulley) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  5. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
