Special Tools
WARNING: This page is about a different variant/trim than selected.

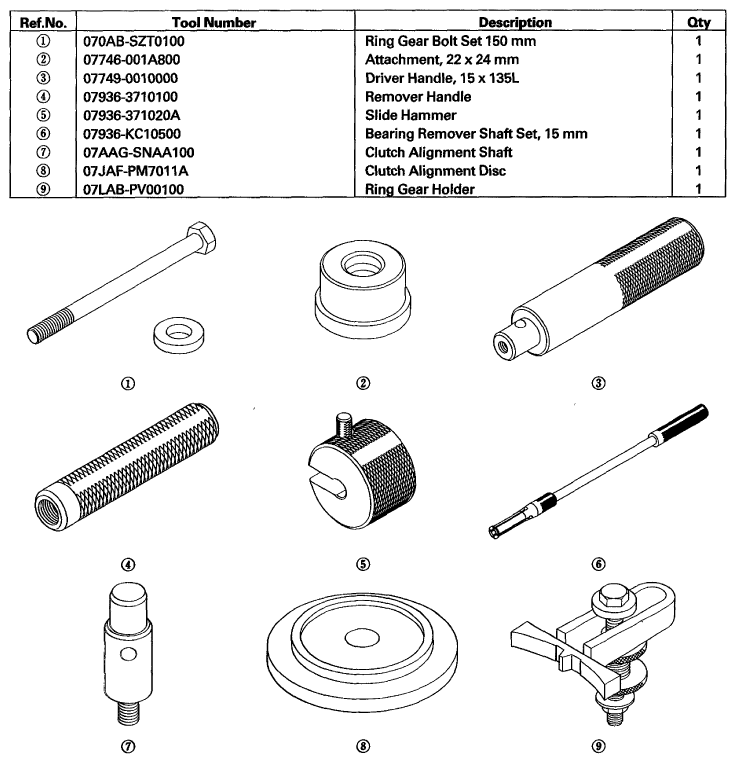

SPECIAL TOOLS
| Ref.No. | Tool Number | Description | Qty |
|---|---|---|---|
| (1) | 070AB-SZT0100 | Ring Gear Bolt Set 150 mm | 1 |
| (2) | 07746-001A800 | Attachment, 22 x 24 mm | 1 |
| (3) | 07749-0010000 | Driver Handle, 15 x 135L | 1 |
| (4) | 07936-3710100 | Remover Handle | 1 |
| (5) | 07936-371020A | Slide Hammer | 1 |
| (6) | 07936-KC10500 | Bearing Remover Shaft Set, 15 mm | 1 |
| (7) | 07AAG-SNAA100 | Clutch Alignment Shaft | 1 |
| (8) | 07JAF-PM7011A | Clutch Alignment Disc | 1 |
| (9) | 07LAB-PV00100 | Ring Gear Holder | 1 |
