Connecting Rod Nut/Bolt Torque

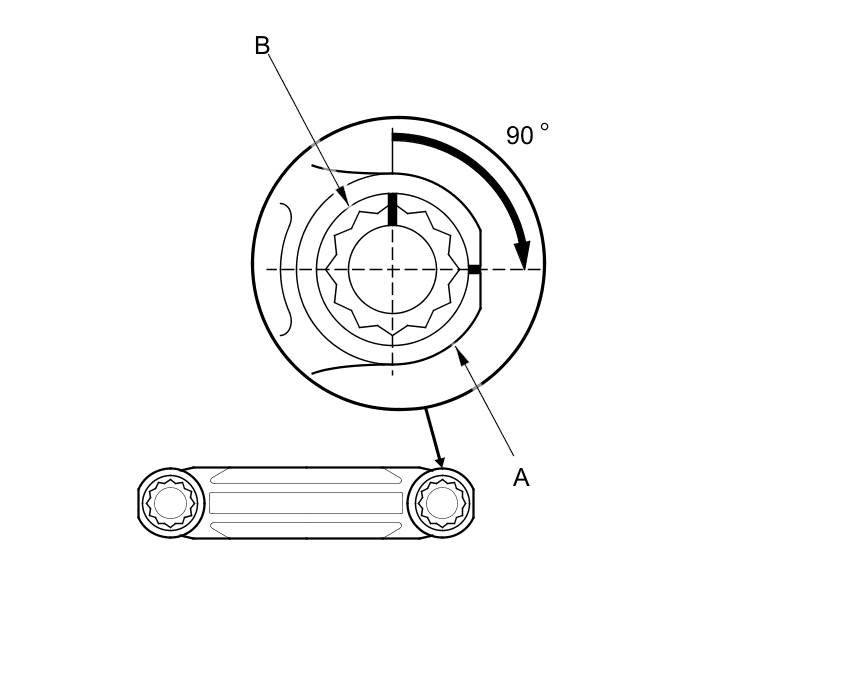

Torque the bolts (E) to 20 N-m (2.0 kgf-m, 15 lbf-ft).
Tighten the connecting rod bolt and additional 90 °.
